  9. Hydraulic Press, 67.13 in H, Manual

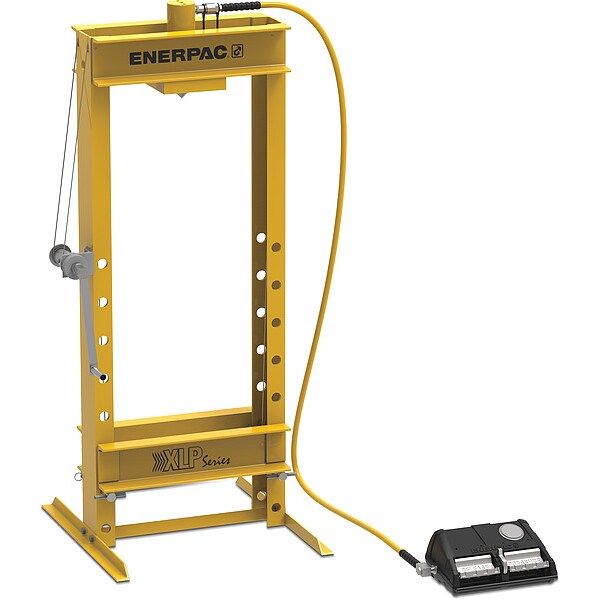

Enerpac Hydraulic Press, 67.13 in H, Manual XLP256XA11GU - main

Hydraulic Press, 67.13 in H, Manual

  • Mfr # XLP256XA11GU

  • Zoro # G4701493

product price: $5,849.99
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.

Key Features

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Air
Base Length
27 61/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP256XA11GU
Zoro #
G4701493
UPC #
-
Country of Origin
Netherlands

Dimensions

Base Length
27 61/64 in
Base Width
28 in
Overall Height
67 1/8 in
Overall Width
28 in
Overall Depth
28 in
Table Length
24 51/64 in
Overall Length
27 61/64 in
Width Between Table Channels
5 33/64 in
Maximum Bed Width
20.08 in
Hydraulic Hose Length
10 ft
Base Depth
28 in
Press Bed Depth
5 1/2 in
Press Bed Width
20 1/8 in

Details

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Air
Pump
Mfr. No. XA11G
Includes
General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Pump
Cylinder Type
Single Acting
Reservoir Capacity
55 cu in
Application
Pressing Bearings
Item
Hydraulic Press
Operating Pressure
10,000 psi
Features
Horizontal Cylinder Adjustment Enables Flexible Load Placement, Welded Frame
Adjustable Bed
Adjustable
Min. Ram-to-Table Distance
14 1/16 in
For Use With
Single Acting Cylinder
Stroke
6 1/4 in
Max. Ram Advance Speed
0.39 in/sec
Max. Ram Press Speed
0.05 in/sec
Max. Ram-to-Table Distance
47 11/16 in
Color
Yellow
Distance Between Uprights
20 1/8 in
Compatible Mfr. Model Number
RC256, XA11G
Pressure
10,000 psi
Maximum Vertical Daylight
47.68 in
Power Source Type
Air
Series
XLP
Operation
Manual
Cylinder Model Number
RC256
Pump Model Number
XA11G
Maximum Ram Press Speed
0.05 in/sec
Maximum Ram Advance Speed
0.39 in/sec
Ram-to-Table Distance - Maximum
47 5/8 in
Ram-to-Table Distance - Minimum
14 in
Capacity
25 ton

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Single Acting
