Baileigh Industrial

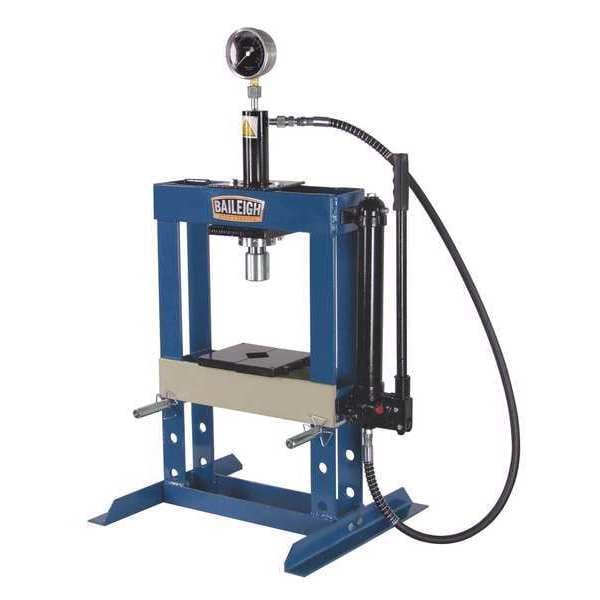

Hydraulic Press, 10 t, Manual Pump, 36 In
- Zoro #: G8001235
- Mfr #: HSP-10H
Hover or click to zoom Tap to zoom
$1,025.46
- Promotion Restriction: Not eligible for promotion
- Frame Capacity: 10 ton
- Frame Type: H-Frame
Item requires special delivery charges. A $25.00 per item surcharge will be applied.
(Sign in or create an account for free shipping on orders over $50)
Total: $1,025.46
Baileigh Industrial #HSP-10H Specifications
- Zoro #: G8001235
- Mfr #: HSP-10H
- Promotion Restriction: Not eligible for promotion
- Frame Capacity: 10 ton
- Frame Type: H-Frame
- Cylinder Stroke: 7"
- Pump Type: Manual
- Base Length: 23-3/4 in
- Base Width: 19-3/4 in
- Overall Height: 36 in
- Includes: Lift Chains, V-Blocks
- Item: Hydraulic Press
- Total Height: 12"
- Total Width: 48"
- Cylinder: Movable/Fixed
- Strokes to Extend Piston 1 In: 16
- Application: Pressing
- Pump: Yes
- Working Width: 13-1/2"
- Ram Travel: 10"
- Features: Movable (Left-Right) Cylinder;Removable Ram Cap;Welded Construction
- Overall Width: 48 in
- Pressure: 10 tons
- Stroke: 16 in
- Ram Size: 2 in
- Material - Machining: Steel
- Distance Between Uprights: 13 1/2 in
- Min. Ram-to-Table Distance: 4.3300 in
- Max. Ram-to-Table Distance: 14.33 in
- Country of Origin (subject to change): China
Description
Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 10 ton
