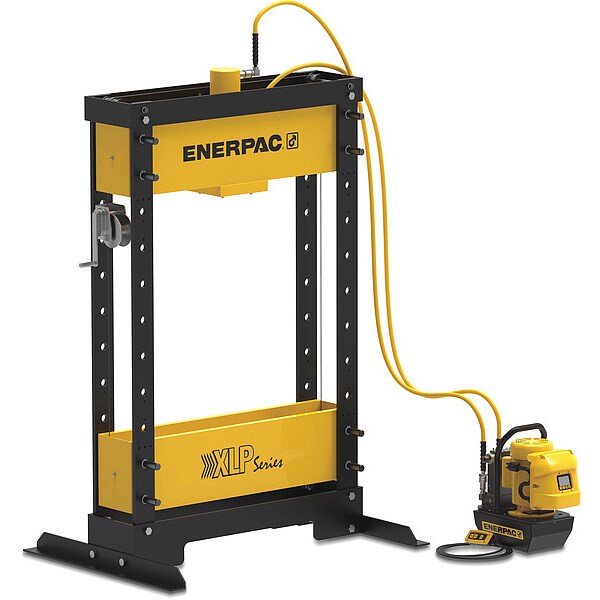

Enerpac Hydraulic Press, 76.97 in H, Electric XLP5013ZEBU - main

Hydraulic Press, 76.97 in H, Electric

  • Mfr # XLP5013ZEBU

  • Zoro # G4700671

product price: $15,169.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Base Length
54 23/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP5013ZEBU
Zoro #
G4700671
UPC #
0662005428038
Country of Origin
India

Dimensions

Base Length
54 23/32 in
Base Width
54 3/4 in
Overall Height
77 in
Overall Depth
39 3/8 in
Overall Width
54 3/4 in
Overall Length
54 23/32 in
Table Length
38 63/64 in
Width Between Table Channels
9 29/64 in
Maximum Bed Width
38.98 in
Press Bed Width
39 in
Base Depth
39 3/8 in
Press Bed Depth
9 1/2 in
Hydraulic Hose Length
10 ft

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Reservoir Capacity
61 cu in
Cylinder Type
Double Acting
Includes
Couplers, Cylinder, Gauge, Hose, Pump
Features
Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement
Application
Pressing Bearings
Operating Pressure
10,000 psi
Pump
Mfr. No. ZE4408SB
Item
Hydraulic Press
Color
Yellow
For Use With
Double Acting Cylinder
Max. Ram-to-Table Distance
37 51/64 in
Min. Ram-to-Table Distance
8 17/64 in
Max. Ram Advance Speed
0.98 in/sec
Max. Ram Press Speed
0.09 in/sec
Compatible Mfr. Model Number
RR5013, ZE4408SB
Adjustable Bed
Adjustable
Pressure
10,000 psi
Stroke
13 1/8 in
Distance Between Uprights
39 in
Power Source Type
Electric
Series
XLP
Maximum Vertical Daylight
37.8 in
Horsepower
1 1/2 hp
Capacity
50 ton
Pump Model Number
ZE4408SB
Operation
Electric
Cylinder Model Number
RR5013
Maximum Ram Advance Speed
0.98 in/sec
Ram-to-Table Distance - Minimum
8 1/4 in
Maximum Ram Press Speed
0.09 in/sec
Ram-to-Table Distance - Maximum
37 3/4 in

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Double Acting
