  9. Hydraulic Press, 76.97 in H, Manual

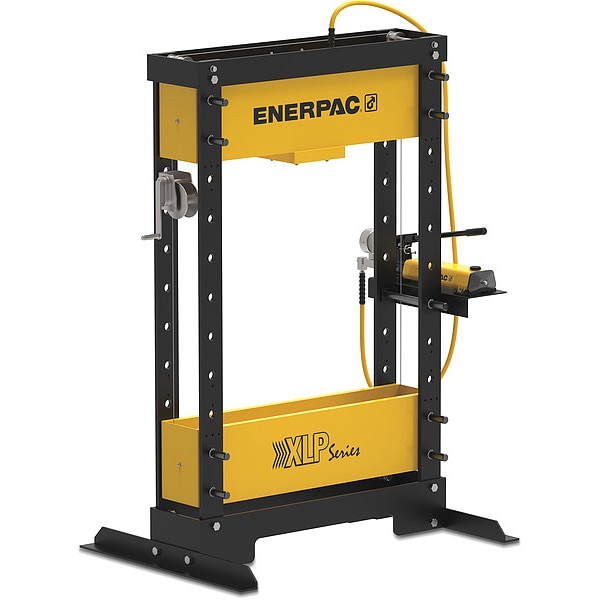

Enerpac Hydraulic Press, 76.97 in H, Manual XLP506P802U - main

Hydraulic Press, 76.97 in H, Manual

  • Mfr # XLP506P802U

  • Zoro # G4700839

product price: $9,041.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hand Pump
Base Length
54 23/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP506P802U
Zoro #
G4700839
UPC #
-
Country of Origin
India

Dimensions

Base Length
54 23/32 in
Base Width
54 3/4 in
Overall Height
77 in
Overall Width
54 3/4 in
Overall Depth
39 3/8 in
Width Between Table Channels
9 29/64 in
Table Length
38 63/64 in
Overall Length
54 23/32 in
Maximum Bed Width
38.98 in
Press Bed Width
39 in
Base Depth
39 3/8 in
Press Bed Depth
9 1/2 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hand Pump
Operating Pressure
10,000 psi
Cylinder Type
Single Acting
Application
Pressing Bearings
Includes
Couplers, Cylinder, Gauge, Hose, Pump
Pump
Mfr. No. P802
Item
Hydraulic Press
Features
Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement
Max. Ram-to-Table Distance
37 51/64 in
Stroke
6 1/4 in
Compatible Mfr. Model Number
P802, RC506
Color
Yellow
Min. Ram-to-Table Distance
8 17/64 in
Distance Between Uprights
39 in
Pressure
10,000 psi
Adjustable Bed
Adjustable
For Use With
Single Acting Cylinder
Power Source Type
Manual
Series
XLP
Maximum Vertical Daylight
37.8 in
Ram-to-Table Distance - Maximum
37 3/4 in
Cylinder Model Number
RC506
Operation
Manual
Ram-to-Table Distance - Minimum
8 1/4 in
Capacity
50 ton
Pump Model Number
P802

Description

Hydraulic Press, Pump Type Hand Pump, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
