Shop ENERPAC

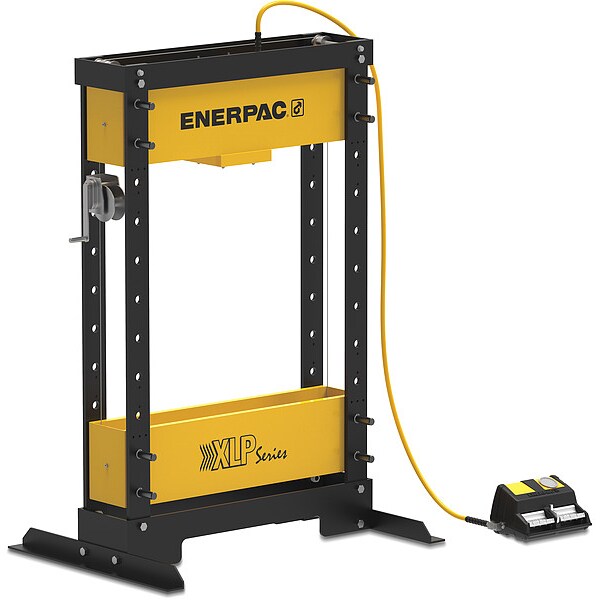

Hydraulic Press, 76.97 in H, Manual

  • Mfr # XLP756XA12GU
  • Zoro # G4701198
product price:
$
12,809.99
/ea
Additional $710.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Frame Capacity
75 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/8 in
Pump Type
Hand Pump
Base Length
56 19/64 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XLP756XA12GU
Zoro #
G4701198
UPC #
-
Country of Origin
India

Dimensions

Base Length
56 19/64 in
Base Width
56 1/4 in
Overall Height
77 in
Overall Depth
39 3/8 in
Overall Width
56 1/4 in
Table Length
38 63/64 in
Overall Length
56 19/64 in
Width Between Table Channels
12 63/64 in
Maximum Bed Width
38.98 in
Press Bed Width
39 in
Press Bed Depth
13 in
Base Depth
39 3/8 in
Hydraulic Hose Length
10 ft

Details

Frame Capacity
75 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/8 in
Pump Type
Hand Pump
Application
Pressing Bearings
Item
Hydraulic Press
Reservoir Capacity
122 cu in
Operating Pressure
10,000 psi
Cylinder Type
Single Acting
Features
Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement
Includes
General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Hand Pump
Pump
Mfr. No. XA12G
Color
Yellow
For Use With
Single Acting Cylinder
Compatible Mfr. Model Number
RC756, XA12G
Distance Between Uprights
39 in
Max. Ram-to-Table Distance
37 39/64 in
Max. Ram Advance Speed
0.13 in/sec
Min. Ram-to-Table Distance
8 5/64 in
Adjustable Bed
Adjustable
Stroke
6 1/8 in
Max. Ram Press Speed
0.02 in/sec
Pressure
10,000 psi
Maximum Vertical Daylight
37.6 in
Power Source Type
Air
Series
XLP
Maximum Ram Press Speed
0.02 in/sec
Capacity
75 ton
Pump Model Number
XA12G
Maximum Ram Advance Speed
0.13 in/sec
Operation
Manual
Ram-to-Table Distance - Maximum
37 5/8 in
Cylinder Model Number
RC506
Ram-to-Table Distance - Minimum
8 1/8 in

Description

Hydraulic Press, Pump Type Hand Pump, Frame Type H-Frame, Frame Capacity 75 ton, Cylinder Type Single Acting
