Shop ENERPAC

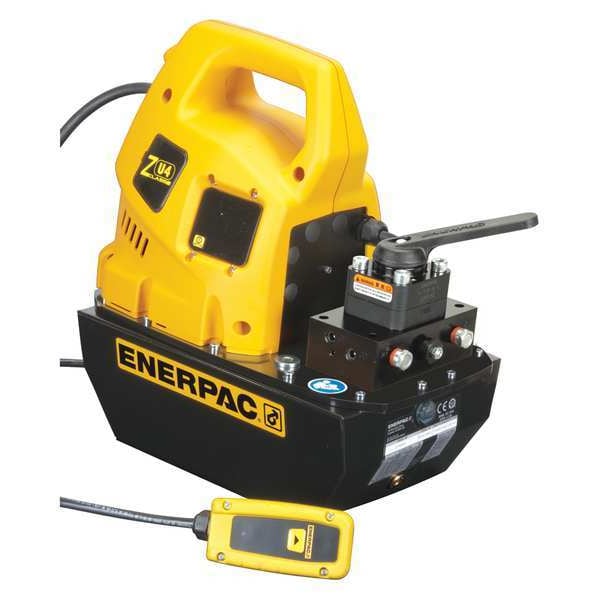

Hydraulic Pump, Electric, 1.7 hp, Universal Motor, 10,000 psi Max Pressure

  • Mfr # ZU4408JB

  • Zoro # G6542417

product price:
$
7,124.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Type
Electric
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZU4408JB
Zoro #
G6542417
UPC #
662005127467
Country of Origin
United States
Item
Hydraulic Pump
Type
Electric
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
Oil Displacement @ 1000 PSI
500 cu in/min
Oil Displacement @ 5000 PSI
76 cu in/min
Oil Displacement @ 10,000 PSI
60 cu in/min
Oil Displacement @ 0-200 PSI
675 cu in/min
HP
1.7 hp
Maximum Pressure
10,000 psi
Motor Type
Universal
Voltage
115
Control Valve
Manaul 4 Way/3 Position Tandem Center
Amps AC
22 A
Relief Valve Range
1000 to 10,000 psi
Reservoir Material
Steel
Oil Displacement @ 200-10,000 PSI
60 to 675 cu in/min
Control Pendant Voltage
Manual
dBA
85 to 90
Application
Construction, Post-Tensioning and Foundation Repair
Fluid Port NPT (In.)
3/8
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
76 cu in/min
Displacement @ 100 psi
700 cu in/min
Control Valve Pressure Relief - Minimum
2,000 psi
Current
22 A
Duty Cycle
Intermittent
Reservoir Capacity
2 gal
Frequency
50 Hz, 60 Hz
Displacement @ 1000 psi
500 cu in/min
Sound Level - Minimum
85 dBA
Sound Level - Maximum
90 dBA
Operating Pressure - Maximum
10,000 psi
Displacement @ 10,000 PSI
60 cu in/min
Nameplate Voltage
115V AC
Cylinder Compatibility
Double Acting
Displacement @ 700 psi
535 cu in/min
Phase
Single
Media Intake Connection Type
NPTF
Control Valve Type
3-Position, 4-Way, Tandem Center
Control Valve Pressure Relief - Maximum
10,000 psi
Control Valve Function
Advance, Hold, Retract
Flow Rate - Maximum
60 cu in/min
Horsepower - Maximum
1 7/10 hp
Displacement @ 5000 psi
76 cu in/min
Displacement @ 200 psi
675 cu in/min

Description

Hydraulic Pump, Horsepower - Maximum 1 7/10 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 76 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 3-Position, 4-Way, Tandem Center, Reservoir Capacity 2 gal, Reservoir Material Steel, Overall Height 16.7 in, Cylinder Compatibility Double Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
