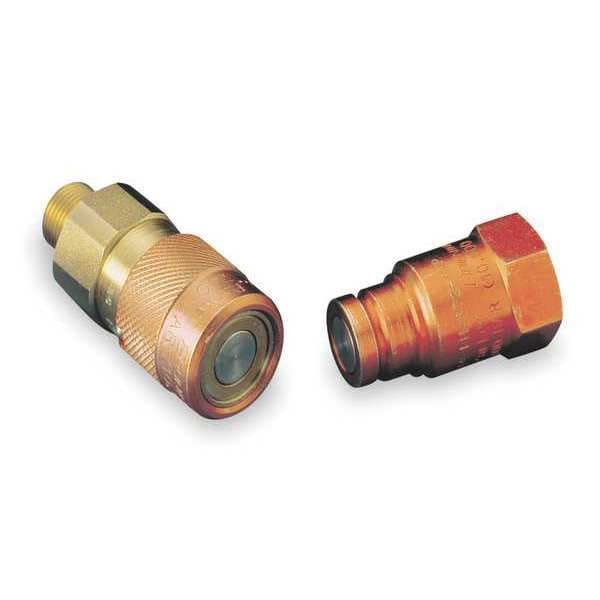

Enerpac Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size F604 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

  • Mfr # F604

  • Zoro # G3151836

product price:  $449.99
/ea
Free Shipping & Returns

Key Features

Quick Coupler Type
Hydraulic Coupler Set
Coupler Interchange Type
Flush Face
Connection Type
NPTF
Max. Flow
2500 cu in/min
Coupler Thread Size
3/8"-18
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
F604
Zoro #
G3151836
UPC #
662005201037
Country of Origin
United States

Dimensions

Coupler Thread Size
3/8"-18
Thread Size
3/8"-18
Length
4-1/4"
Overall Length
4 3/8 in
Max. Outside Dia.
1 1/4 in
Coupling Size
3/8 in

Details

Quick Coupler Type
Hydraulic Coupler Set
Item
Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type
Flush Face
Connection Type
NPTF
Max. Flow
2500 cu in/min
Seal Material
Nitrile, PTFE
Coupling Locking Type
Push-to-Connect
Coupler Flow Rate
10.8 gpm
Max. Pressure
10,000 psi
Coupler Body Material
Steel
Type
Complete Set
Coupler Finish
Zinc Plated
Series
Flush-Face
For Use With
Hydraulic Systems
Body Material
Steel
Sleeve Material
Steel
Valve Design
Flush Face
Locking Mechanism
Push together
Coupler Connection Type
NPTF
Finish/Coating
Zinc Plated
Max. Working Pressure @ 70 F
10,000 psi
Coupling Component
Set
Includes Bearing
No
Valve Type
Flush Face
Max. Flow Rate
40.97 lpm
Includes Shut Off
Yes
Fitting Type
Female NPTF and Male NPTF
Hose Fitting Gender
(1) Male; (1) Female
Includes Valve
Yes

Description

Hydraulic Quick Connect Hose Coupling, Set, Flush-Face Series, Steel, Coupling Size 3/8 in, (1) Male; (1) Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 40.97 lpm
