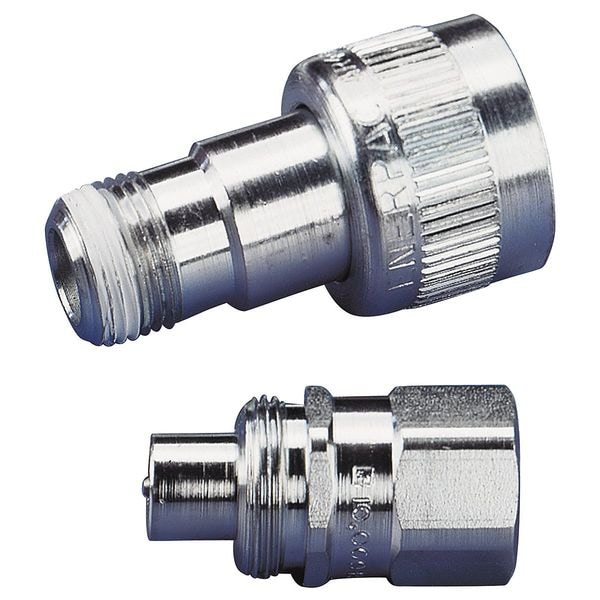

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, Regular Series

  • Mfr # A630

  • Zoro # G2826476

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Max. Flow
462 cu in/min
Seal Material
Buna-N
Coupling Locking Type
Sleeve
Max. Pressure
10,000 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A630
Zoro #
G2826476
UPC #
662005201358
Country of Origin
United States

Dimensions

Thread Size
1/4"-18
Length
2-1/2"
Coupler Thread Size
1/4"-18
Overall Length
2 5/8 in
Max. Outside Dia.
7/8 in
Coupling Size
1/4 in
Wire Rope Length
2 5/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Max. Flow
462 cu in/min
Seal Material
Buna-N
Coupling Locking Type
Sleeve
Max. Pressure
10,000 psi
Type
Complete Set
Connection Type
Threaded
For Use With
Hydraulic Systems
Sleeve Material
Steel
Includes
Dust Cap
Series
Regular
Operating Temp. Range
-25 Degrees to 375 Degrees F
Coupler Connection Type
NPTF
Coupler Interchange Type
Enerpac Regular
Coupler Flow Rate
2.0 gpm
Coupler Finish
Plain
Standards
ASME Y14.5
Coupler Body Material
Steel
Valve Design
Regular
Quick Coupler Type
Hydraulic Coupler Set
Locking Mechanism
Threaded
Fitting Type
Female NPTF and Male NPTF
Finish/Coating
Zinc Plated
Hose Fitting Gender
(1) Male; (1) Female
Max. Flow Rate
7.57 lpm
Includes Valve
Yes
Max. Working Pressure @ 70 F
10,000 psi
Includes Shut Off
Yes
Coupling Component
Set
Includes Bearing
No
Valve Type
Poppet
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Hydraulic Quick Connect Hose Coupling, Set, Regular Series, Steel, Coupling Size 1/4 in, (1) Male; (1) Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 7.57 lpm
