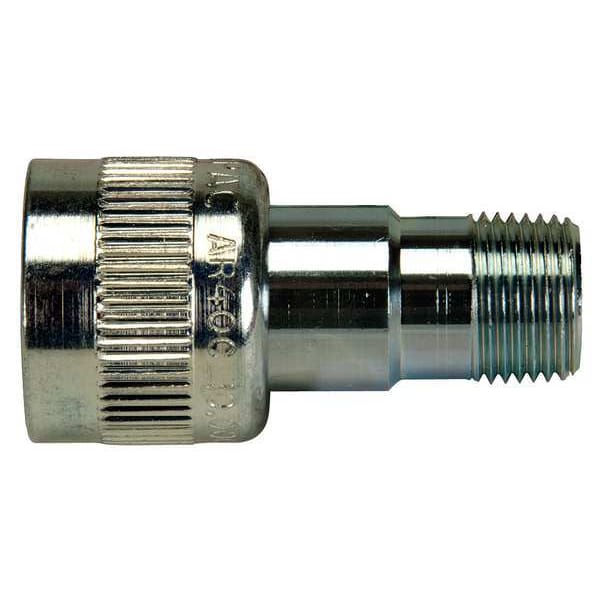

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 3/8"-18 Thread Size, SPEE-D Series

Mfr # AR400
Zoro # G5154676

68.95

Zoro's best price: not eligible for any other offers or promotions

Key Features

Body Material

Steel

Max. Flow

462 cu in/min

Seal Material

Coupling Locking Type

Sleeve

Max. Pressure

10,000 psi

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AR400
Zoro #: G5154676
UPC #: 662005201297
Country of Origin: United States

Dimensions

Thread Size: 3/8"-18
Length: 2 1/2 in
Coupler Thread Size: 3/8"-18
Overall Length: 2 1/2 in
Coupling Size: 3/8 in
Max. Outside Dia.: 1 1/8 in
Wire Rope Length: 2 1/2 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Steel
Max. Flow: 462 cu in/min
Seal Material: PU
Coupling Locking Type: Sleeve
Max. Pressure: 10,000 psi
Type: Female Half
Connection Type: Threaded
For Use With: Hydraulic Systems
Sleeve Material: Steel
Includes: Dust Cap
Series: SPEE-D
Coupler Interchange Type: SPEE-D
Coupler Finish: Chrome Plated
Quick Coupler Type: Hydraulic Coupler Body
Coupler Body Material: Steel
Locking Mechanism: Threaded
Valve Design: Regular Speed-D
Coupler Connection Type: NPTF
Standards: HTMA Recognized
Coupler Flow Rate: 2.0 gpm
Coupling Component: Socket
Finish/Coating: Zinc Plated
Includes Valve: Yes
Includes Bearing: No
Valve Type: Poppet
Fitting Type: Female NPTF
Hose Fitting Gender: Female
Includes Shut Off: Yes
Max. Working Pressure @ 70 F: 10,000 psi
Max. Flow Rate: 7.57 lpm
Operating Temperature - Minimum: -40 Degrees F
Operating Temperature - Maximum: 250 Degrees F

Description

Hydraulic Quick Connect Hose Coupling, Socket, SPEE-D Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 7.57 lpm
