Shop ENERPAC

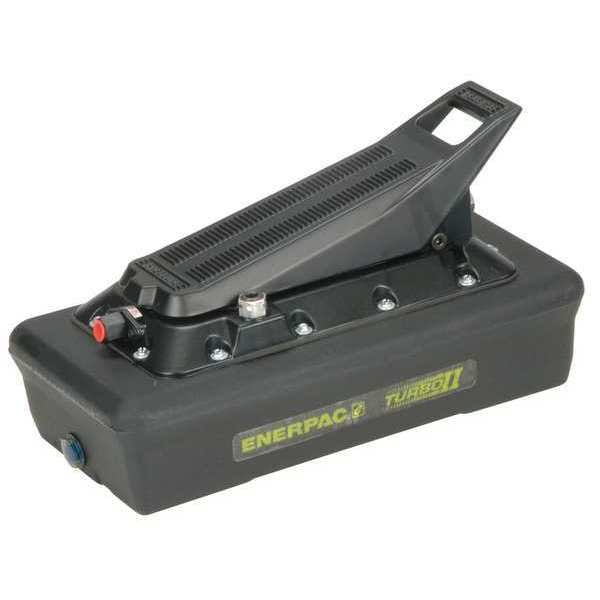

PATG1105N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 230 in3 Usable Oil

  • Mfr # PATG1105N
  • Zoro # G2130554

product price:
$
1,705.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Oil Capacity (Cu.-In.)
230 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 0 PSI
60.00 cu in/min
Oil Displacement @ 10,000 PSI
10 cu in/min
Operating Air PSI
40 to 125
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PATG1105N
Zoro #
G2130554
UPC #
662005118748
Country of Origin
United States
Item
Air Hydraulic Pump
Oil Capacity (Cu.-In.)
230 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 0 PSI
60.00 cu in/min
Oil Displacement @ 10,000 PSI
10 cu in/min
Operating Air PSI
40 to 125
Air Consumption (SCFM)
12
Actuation Type
Foot, Hand
Air Inlet NPT (In.)
1/4
Fluid Port NPT (In.)
3/8
Capacity (PSI)
10,000
Includes
Air and Hydraulic Inlet Filter, Air Exhaust Muffler
Features
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Type
Air Powered
Treadle
Three Position
dBA
76
Built-In
Internal Pressure Relief Valve
Reservoir Capacity
230 cu in
Flow Rate - Maximum
10 cu in/min
Air Consumption - Maximum
12 scfm
Air Intake Pressure - Maximum
125 psi
Air Intake Connection Type
FNPT
Operating Pressure - Maximum
10,000 psi
Treadle Design
Three Position
Control Valve Function
Advance, Hold, Retract
Sound Level - Maximum
76 dBA
Displacement @ No Load
60 cu in/min
Control Valve Type
3-Position, 3-Way
Displacement @ 10,000 PSI
10 cu in/min

Dimensions

Height (In.)
8.25 in
Width (In.)
7.9375 in
Length (In.)
15.625 in
Overall Length
17.2 in
Overall Width
7.9 in
Media Intake Connection Size
3/8 in
Overall Height
8.2 in
Air Intake Connection Size
1/4 in
Wire Rope Length
17.2 in
Length
17.2 in
Fits Chest Size
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve

Description

Hydraulic Pump, Reservoir Capacity 230 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 10 cu in/min, Sound Level - Maximum 76 dBA, Control Valve Type 3-Position, 3-Way, Actuation Type Foot, Hand, Air Consumption - Maximum 12 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Displacement @ No Load 60 cu in/min
