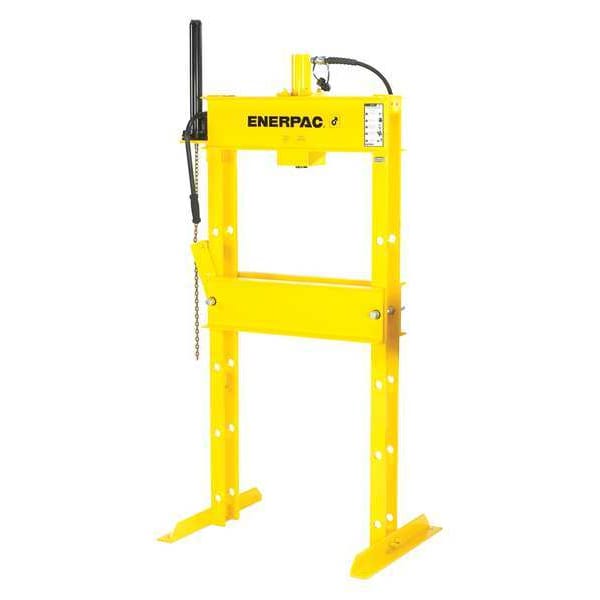

Enerpac IPA10023, 100 Ton, H-Frame Hydraulic Press with RC10010 Single-Acting Cylinder and ZA4208MX Air Pump IPA10023 - main

IPA10023, 100 Ton, H-Frame Hydraulic Press with RC10010 Single-Acting Cylinder and ZA4208MX Air Pump

  • Mfr # IPA10023

  • Zoro # G3484866

product price:  $31,901.99
/ea
Item requires special delivery charges. A $660.00 per item surcharge will be applied.

Key Features

Frame Capacity
100 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Air
Base Length
52 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPA10023
Zoro #
G3484866
UPC #
662005406661
Country of Origin
United States

Dimensions

Base Length
52 in
Base Width
51 in
Overall Height
84 3/4 in
Total Height
81"
Hose Length
6 ft
Working Width
52"
Bed Height
42.5"
Working Height
81"
Total Width
65"
Overall Width
51 in
Width Between Table Channels
6 3/4 in
Overall Length
36 in
Overall Depth
36 in
Maximum Bed Width
35 in
Press Bed Depth
5 3/4 in
Base Depth
36 in
Hydraulic Hose Length
6 ft
Press Bed Width
35 in

Details

Frame Capacity
100 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Air
Application
Pressing Bearings
Item
Hydraulic Press
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose
Ram Travel
19"
Strokes to Extend Piston 1 In
1.5
Cylinder Type
Single Acting
Features
Welded Frame
Reservoir Capacity
1.75 gal
Cylinder
Mfr. No. RC-10010
Pump
Mfr. No. ZA4208MX
Adjustable Bed
Adjustable
For Use With
Cylinder Mfr. No. RC10010
Stroke
1-1/2 in
Max. Ram Press Speed
41.2 in/sec
Max. Ram-to-Table Distance
42-1/2 in
Pressure
10,000 psi, 100 tons
Max. Ram Advance Speed
1.9 in/sec
Distance Between Uprights
35 in
Operating Pressure
10,000 psi
Maximum Vertical Daylight
41 in
Power Source Type
Air
Series
IP
Cylinder Model Number
RC10010
Maximum Ram Press Speed
41.2 in/sec
Maximum Ram Advance Speed
1.9 in/sec
Ram-to-Table Distance - Maximum
41 in
Ram-to-Table Distance - Minimum
5 1/2 in
Capacity
100 ton
Pump Model Number
ZA4208MX
Operation
Air

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 100 ton, Cylinder Type Single Acting
