  9. IPA1220, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump

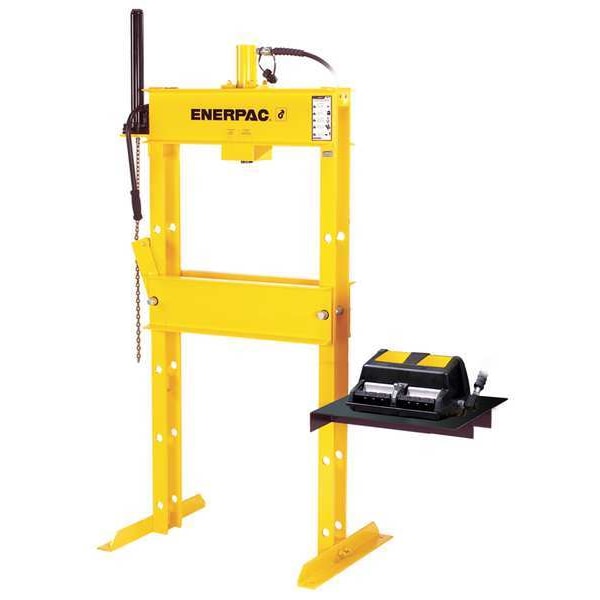

Enerpac IPA1220, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump IPA1220 - main

IPA1220, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump

  • Mfr # IPA1220

  • Zoro # G3443310

product price: $4,537.99
/ea
Item requires special delivery charges. A $105.00 per item surcharge will be applied.

Key Features

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Air
Base Length
25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPA1220
Zoro #
G3443310
UPC #
662005406470
Country of Origin
United States

Dimensions

Base Length
25 in
Base Width
24 7/8 in
Overall Height
52 in
Working Width
18-1/2"
Working Height
40"
Total Height
52"
Bed Height
40"
Total Width
25"
Overall Width
24 7/8 in
Overall Length
29-3/4 in
Overall Depth
29 3/4 in
Maximum Bed Width
18.63 in
Press Bed Width
18 5/8 in
Hydraulic Hose Length
8 ft
Press Bed Depth
7 1/2 in
Base Depth
29 3/4 in

Details

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Air
Item
Hydraulic Press
Strokes to Extend Piston 1 In
1.5
Ram Travel
29-1/2"
Application
Pressing Bearings
Reservoir Capacity
61 cu in
Cylinder
Mfr. No. RC-1010
Pump
Mfr. No. XA-11
Cylinder Type
Single Acting
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose
Features
Heavy Duty Welded Construction
Pressure
10 tons/10,000 psi
Max. Ram Press Speed
13.4 in/sec
For Use With
Cylinder Mfr. No. RC1010
Max. Ram Advance Speed
2.2 in/sec
Adjustable Bed
Adjustable
Max. Ram-to-Table Distance
40 in
Stroke
1-1/2 in
Distance Between Uprights
18 5/8 in
Operating Pressure
10,000 psi
Maximum Vertical Daylight
40 in
Power Source Type
Air
Series
IP
Operation
Air
Cylinder Model Number
RC10010
Maximum Ram Advance Speed
2.2 in/sec
Ram-to-Table Distance - Minimum
2 1/2 in
Ram-to-Table Distance - Maximum
40 in
Capacity
10 ton
Maximum Ram Press Speed
13.4 in/sec
Pump Model Number
XA12

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 10 ton, Cylinder Type Single Acting
