  9. IPA2520, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and XA12 Air Pump

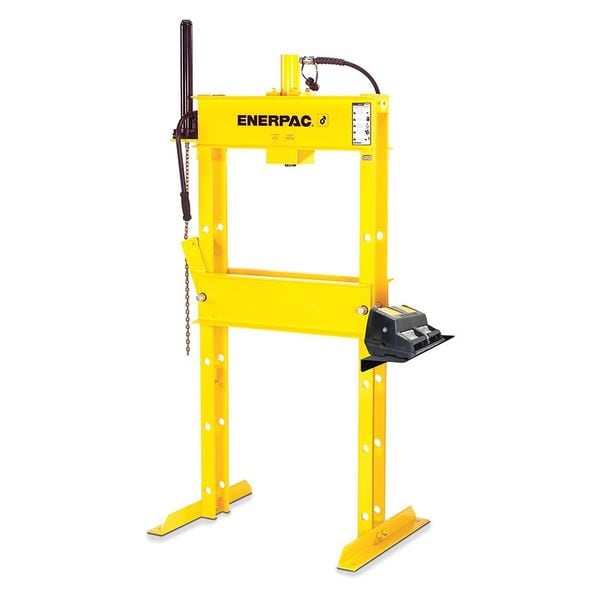

Enerpac IPA2520, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and XA12 Air Pump IPA2520 - main

IPA2520, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and XA12 Air Pump

  • Mfr # IPA2520

  • Zoro # G3443301

product price: $12,624.99
/ea
Item requires special delivery charges. A $410.00 per item surcharge will be applied.

Key Features

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Air
Base Length
40-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IPA2520
Zoro #
G3443301
UPC #
662005406531
Country of Origin
United States

Dimensions

Base Length
40-1/2 in
Base Width
40 1/2 in
Overall Height
89 1/4 in
Total Height
76"
Working Width
29"
Working Height
7 to 54-1/2"
Total Width
40-1/2"
Bed Height
54.5"
Overall Width
40 1/2 in
Overall Length
30 in
Width Between Table Channels
4 in
Overall Depth
30 in
Maximum Bed Width
29 in
Press Bed Depth
4 in
Press Bed Width
29 in
Base Depth
30 in

Details

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Air
Pump
Mfr. No. XA-12
Reservoir Capacity
122 cu in
Application
Pressing Bearings
Includes
Cylinder, Gauge, Hoses, Pump
Item
Hydraulic Press
Features
For Intermittent Use;Heavy Duty Welded Construction
Strokes to Extend Piston 1 In
2.5
Cylinder
Mfr. No. RC-2514
Ram Travel
6"
Cylinder Type
Single Acting
Max. Ram Advance Speed
5.2 in/sec
Max. Ram Press Speed
30.9 in/sec
For Use With
Cylinder Mfr. No. RC2514
Distance Between Uprights
29 in
Max. Ram-to-Table Distance
54-1/2 in
Stroke
2-1/2 in
Adjustable Bed
Adjustable
Pressure
10,000 psi, 25 tons
Operating Pressure
10,000 psi
Series
IP
Maximum Vertical Daylight
54.5 in
Power Source Type
Air
Cylinder Model Number
RC2514
Pump Model Number
XA12
Capacity
25 ton
Maximum Ram Press Speed
30.9 in/sec
Maximum Ram Advance Speed
5.2 in/sec
Operation
Air
Ram-to-Table Distance - Maximum
54 1/2 in
Ram-to-Table Distance - Minimum
7 in

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Single Acting
