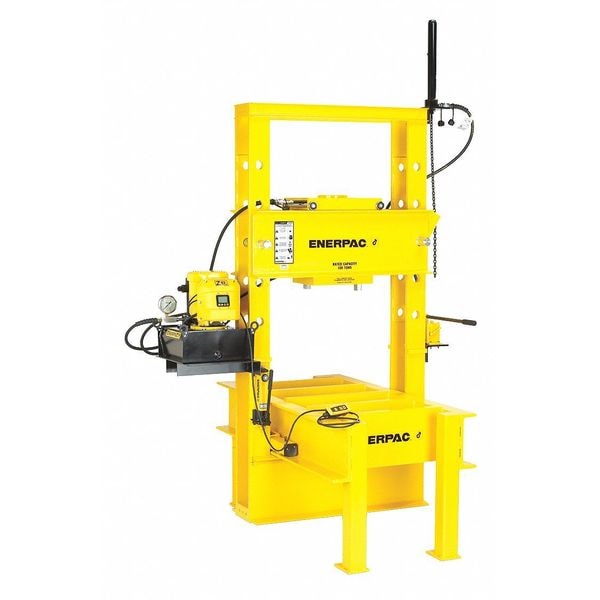

IPR5075, 50 Ton, Roll Frame Hydraulic Press, RR5013 Double-Acting Cylinder, ZE4420SBN Electric Pump

  • Mfr # IPR5075

  • Zoro # G2888140

product price:  $55,695.99
/ea
Additional $1,490.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
50 ton
Frame Type
Roll Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Base Length
55-59/64 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IPR5075
Zoro #
G2888140
UPC #
662005406760
Country of Origin
United States

Dimensions

Base Length
55-59/64 in
Base Width
55 7/8 in
Overall Height
113 in
Total Height
112.96"
Total Width
55-23/25"
Working Width
55-23/25"
Working Height
113"
Bed Height
30"
Hose Length
10 ft
Width Between Table Channels
5 in
Overall Length
64 in
Overall Width
55 7/8 in
Overall Depth
64 in
Maximum Bed Width
28.75 in
Press Bed Depth
5 in
Press Bed Width
28 3/4 in
Hydraulic Hose Length
10 ft
Base Depth
64 in

Details

Frame Capacity
50 ton
Frame Type
Roll Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Pump
Mfr. No. ZE4420SB-N
Features
Welded Frame
Cylinder Type
Double Acting
Item
Hydraulic Press
Cylinder
Mfr. No. RR-5013
Strokes to Extend Piston 1 In
1
Includes
Cylinder, Gauge, Hoses, Pump
Ram Travel
16"
Reservoir Capacity
5 gal
Application
Pressing Bearings
Adjustable Bed
Adjustable
Stroke
1 in
Max. Ram Press Speed
11.1 in/min
For Use With
Cylinder Mfr. No. RR5013
Distance Between Uprights
28 3/4 in
Max. Ram Advance Speed
1 in/min
Pressure
10,000 psi, 50 tons
Max. Ram-to-Table Distance
37.12 in
Operating Pressure
10,000 psi
Series
IPR
Maximum Vertical Daylight
37.12 in
Cylinder Model Number
RR5013
Pump Model Number
ZE4420SBN
Maximum Ram Advance Speed
1 in/min
Maximum Ram Press Speed
11.1 in/min
Ram-to-Table Distance - Minimum
6 in
Ram-to-Table Distance - Maximum
37 1/8 in
Operation
Electric
Capacity
50 ton

Description

Hydraulic Press, Pump Type Electric, Frame Type Roll Frame, Frame Capacity 50 ton, Cylinder Type Double Acting
