  5. IPA5021, 50 Ton, H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and PAM1022 Air Pump

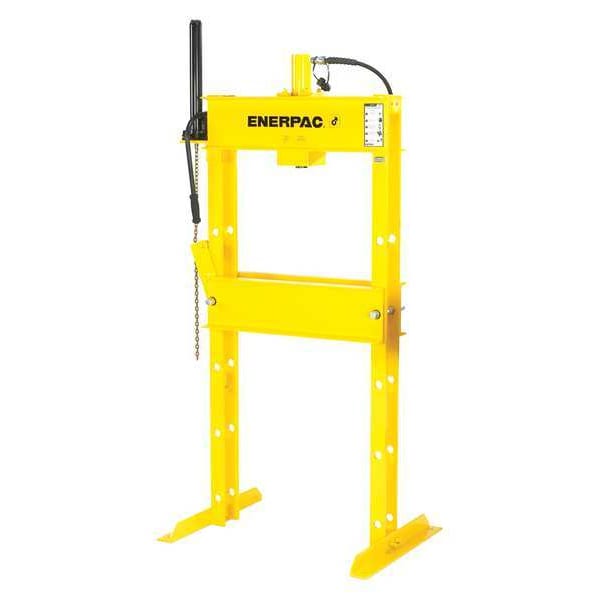

Enerpac IPA5021, 50 Ton, H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and PAM1022 Air Pump IPA5021 - main
Shop ENERPAC

IPA5021, 50 Ton, H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and PAM1022 Air Pump

  • Mfr # IPA5021

  • Zoro # G3484839

product price:  $18,577.00
/ea
Item requires special delivery charges. A $370.00 per item surcharge will be applied.

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Air
Base Length
42 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IPA5021
Zoro #
G3484839
UPC #
662005129799
Country of Origin
United States

Dimensions

Base Length
42 in
Base Width
42 3/4 in
Overall Height
84 3/4 in
Total Width
42"
Working Height
82"
Working Width
42"
Hose Length
6 ft
Bed Height
48.56"
Total Height
82"
Overall Width
42 3/4 in
Overall Length
36 in
Width Between Table Channels
5 in
Overall Depth
36 in
Maximum Bed Width
28.75 in
Press Bed Width
28 3/4 in
Press Bed Depth
5 in
Hydraulic Hose Length
6 ft
Base Depth
36 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Air
Cylinder
Mfr. No. RC-506
Ram Travel
16"
Features
Welded Frame
Strokes to Extend Piston 1 In
1
Pump
Mfr. No. PAM-1022
Cylinder Type
Single Acting
Application
Pressing Bearings
Item
Hydraulic Press
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose
Reservoir Capacity
2 gal
Stroke
1 in
For Use With
Cylinder Mfr. No. RC506
Max. Ram Press Speed
74 in/sec
Pressure
10,000 psi, 50 tons
Adjustable Bed
Adjustable
Max. Ram-to-Table Distance
48.56 in
Max. Ram Advance Speed
1 in/sec
Distance Between Uprights
28 3/4 in
Operating Pressure
10,000 psi
Series
IP
Power Source Type
Air
Maximum Vertical Daylight
48.56 in
Pump Model Number
PAM1022
Operation
Air
Cylinder Model Number
RC506
Ram-to-Table Distance - Minimum
7 in
Maximum Ram Press Speed
74 in/sec
Ram-to-Table Distance - Maximum
48 1/2 in
Capacity
50 ton
Maximum Ram Advance Speed
1 in/sec

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
