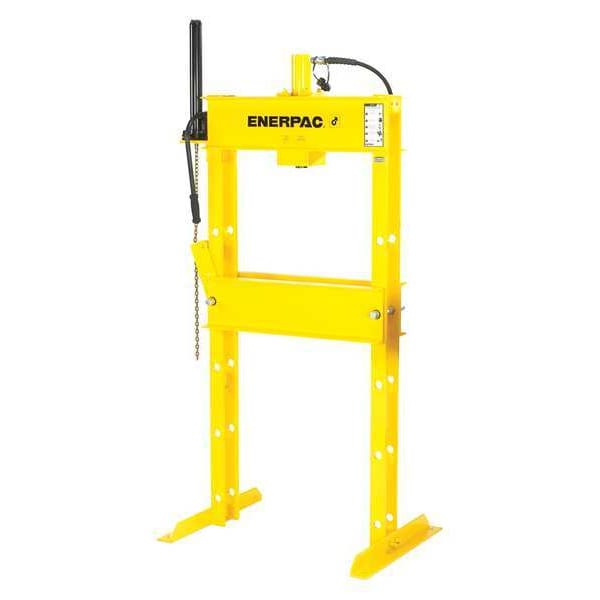

Enerpac IPE2505, 25 Ton, H-Frame Hydraulic Press, RC256 Single-Acting Cylinder and PUJ1200B Electric Pump IPE2505 - main

IPE2505, 25 Ton, H-Frame Hydraulic Press, RC256 Single-Acting Cylinder and PUJ1200B Electric Pump

  • Mfr # IPE2505

  • Zoro # G3484778

product price:  $12,630.00
/ea
Additional $245.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Electric
Base Length
41 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IPE2505
Zoro #
G3484778
UPC #
662005406517
Country of Origin
United States

Dimensions

Base Length
41 in
Base Width
40 1/2 in
Overall Height
89 1/4 in
Total Height
81"
Working Height
81"
Hose Length
6 ft
Working Width
41"
Total Width
41"
Bed Height
54.5"
Width Between Table Channels
4 in
Overall Width
40 1/2 in
Overall Length
30 in
Overall Depth
30 in
Maximum Bed Width
29 in
Base Depth
30 in
Press Bed Depth
4 in
Press Bed Width
29 in
Hydraulic Hose Length
6 ft

Details

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Electric
Ram Travel
10"
Cylinder Type
Single Acting
Cylinder
Mfr. No. RC-256
Item
Hydraulic Press
Reservoir Capacity
0.5 gal
Features
Welded Frame
Application
Pressing Bearings
Strokes to Extend Piston 1 In
2
Includes
Cylinder, Gauge, Hoses, Pump
Pump
Mfr. No. PUJ-1200B
Adjustable Bed
Adjustable
Pressure
10,000 psi, 25 tons
Max. Ram Advance Speed
1.5 in/sec
Max. Ram Press Speed
15.4 in/sec
Stroke
2 in
Distance Between Uprights
29 in
Max. Ram-to-Table Distance
54-1/2 in
For Use With
Cylinder Mfr. No. RC256
Operating Pressure
10,000 psi
Maximum Vertical Daylight
54.5 in
Power Source Type
Electric
Series
IP
Operation
Electric
Ram-to-Table Distance - Minimum
7 in
Pump Model Number
PUJ1200B
Capacity
25 ton
Ram-to-Table Distance - Maximum
54 1/2 in
Maximum Ram Press Speed
15.4 in/sec
Maximum Ram Advance Speed
1.5 in/sec
Cylinder Model Number
RC256

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Single Acting
