Enerpac IPE5005, 50 Ton, H-Frame Hydraulic Press, RC506 Single-Acting Cylinder and PUJ1200B Electric Pump IPE5005 - main
Shop ENERPAC

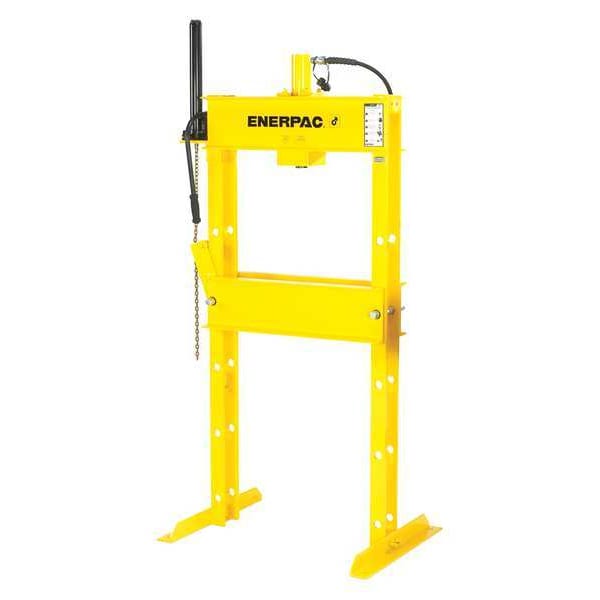

IPE5005, 50 Ton, H-Frame Hydraulic Press, RC506 Single-Acting Cylinder and PUJ1200B Electric Pump

  • Mfr # IPE5005

  • Zoro # G3484741

product price:  $18,000.99
/ea
Item requires special delivery charges. A $405.00 per item surcharge will be applied.

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Electric
Base Length
44 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IPE5005
Zoro #
G3484741
UPC #
662005406623
Country of Origin
United States

Dimensions

Base Length
44 in
Base Width
42 3/4 in
Overall Height
84 3/4 in
Total Height
82"
Total Width
44"
Bed Height
48.56"
Working Height
82"
Working Width
44"
Hose Length
6 ft
Overall Length
36 in
Overall Width
42 3/4 in
Width Between Table Channels
5 in
Overall Depth
36 in
Maximum Bed Width
28.75 in
Press Bed Width
28 3/4 in
Hydraulic Hose Length
6 ft
Base Depth
36 in
Press Bed Depth
14 3/8 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Electric
Item
Hydraulic Press
Strokes to Extend Piston 1 In
4
Includes
Cylinder, Gauge, Hoses, Pump
Pump
Mfr. No. PUJ-1200B
Application
Pressing Bearings
Features
Welded Frame
Ram Travel
10"
Cylinder Type
Single Acting
Reservoir Capacity
0.5 gal
Cylinder
Mfr. No. RC-506
Max. Ram-to-Table Distance
48.56 in
Stroke
4 in
Adjustable Bed
Adjustable
For Use With
Cylinder Mfr. No. RC506
Max. Ram Advance Speed
2.9 in/sec
Max. Ram Press Speed
28.9 in/sec
Pressure
10,000 psi, 50 tons
Distance Between Uprights
28 3/4 in
Phase
Single
Operating Pressure
10,000 psi
Voltage
115 VAC
Series
IP
Maximum Vertical Daylight
48.56 in
Power Source Type
Electric
Horsepower
1/2 hp
Capacity
50 ton
Ram-to-Table Distance - Maximum
48 1/2 in
Maximum Ram Press Speed
28.9 in/sec
Maximum Ram Advance Speed
2.9 in/sec
Operation
Electric
Pump Model Number
PUJ1200B
Cylinder Model Number
RC506
Ram-to-Table Distance - Minimum
7 in

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
