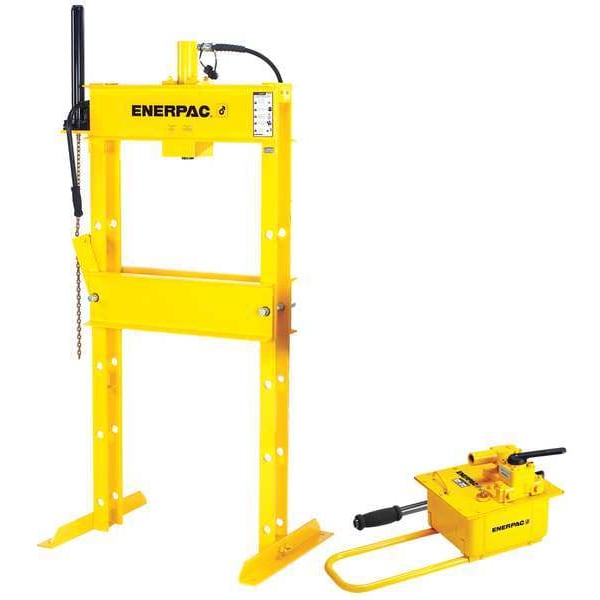

Enerpac IPH10080, 100 Ton, H-Frame Hydraulic Press with RR1006 Double-Acting Cylinder and P464 Hand Pump IPH10080 - main

IPH10080, 100 Ton, H-Frame Hydraulic Press with RR1006 Double-Acting Cylinder and P464 Hand Pump

  • Mfr # IPH10080

  • Zoro # G2230755

product price: $30,720.99
/ea
Item requires special delivery charges. A $560.00 per item surcharge will be applied.

Key Features

Frame Capacity
100 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Manual
Base Length
51 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPH10080
Zoro #
G2230755
UPC #
662005406715
Country of Origin
United States

Dimensions

Base Length
51 in
Base Width
51 in
Overall Height
84 3/4 in
Working Width
51"
Hose Length
6 ft
Total Height
81"
Working Height
81"
Bed Height
42.5"
Total Width
51"
Overall Length
36 in
Width Between Table Channels
6 3/4 in
Overall Width
42 3/4 in
Overall Depth
36 in
Maximum Bed Width
35 in
Hydraulic Hose Length
6 ft
Press Bed Width
35 in
Press Bed Depth
5 3/4 in
Base Depth
36 in

Details

Frame Capacity
100 ton
Frame Type
H-Frame
Cylinder Stroke
6 in
Pump Type
Manual
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump
Item
Hydraulic Press
Strokes to Extend Piston 1 In
3
Cylinder
Mfr. No. RR-1006
Pump Handle Effort @ Rated Capacity (Lb.)
110 lb.
Pump
Mfr. No. P-464
Features
Welded Frame
Application
Pressing Bearings
Cylinder Type
Double Acting
Reservoir Capacity
453 cu in
Ram Travel
16"
Adjustable Bed
Adjustable
Max. Ram Press Speed
70 in/sec
Stroke
3 in
Distance Between Uprights
35 in
For Use With
Cylinder Mfr. No. RR1006
Max. Ram Advance Speed
3 in/sec
Pressure
10,000 psi, 100 tons
Max. Ram-to-Table Distance
42-1/2 in
Operating Pressure
10,000 psi
Series
IP
Maximum Vertical Daylight
41 in
Power Source Type
Manual
Maximum Ram Press Speed
70 in/sec
Ram-to-Table Distance - Maximum
41 in
Maximum Ram Advance Speed
3 in/sec
Ram-to-Table Distance - Minimum
5 1/2 in
Cylinder Model Number
RR1006
Capacity
100 ton
Operation
Manual
Pump Model Number
P464

Description

Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 100 ton, Cylinder Type Double Acting
