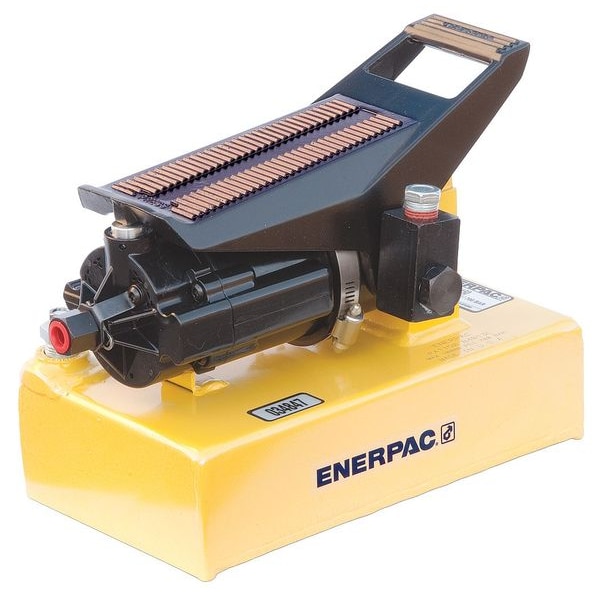

PA1150, Air Hydraulic Pump, 80 in3 Usable Oil, 8 in3/min Oil Flow at 10,000 psi

Mfr # PA1150
Zoro # G5589026

1,811.00

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Oil Capacity (Cu.-In.)

80 cu in

Reservoir Capacity (Gal.)

0.15 gal

Oil Displacement @ 0 PSI

40.00 cu in/min

Oil Displacement @ 10,000 PSI

8 cu in/min

Operating Air PSI

60 to 120

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PA1150
Zoro #: G5589026
UPC #: 662005100125
Country of Origin: United States

Dimensions

Height (In.): 4.68 in
Length (In.): 11 in
Width (In.): 6.75 in
Overall Length: 6.8 in
Overall Width: 11.1 in
Overall Height: 8.3 in
Media Intake Connection Size: 3/8 in
Air Intake Connection Size: 1/4 in
Wire Rope Length: 6.8 in
Length: 6.8 in

Details

Item: Air Hydraulic Pump
Oil Capacity (Cu.-In.): 80 cu in
Reservoir Capacity (Gal.): 0.15 gal
Oil Displacement @ 0 PSI: 40.00 cu in/min
Oil Displacement @ 10,000 PSI: 8 cu in/min
Operating Air PSI: 60 to 120
Air Consumption (SCFM): 9
Actuation Type: Foot, Hand
Fluid Port NPT (In.): 3/8
Usable Oil Capacity Vertical Mount: 80 cu in
Includes: Swivel Coupling
Air Inlet NPT (In.): 1/4 Female
Capacity (PSI): 10,000
Treadle: Three Position
Type: Air Powered
dBA: 85
Usable Oil Capacity Horizontal Mount: 80 cu in
Features: Ergonomic Design
Treadle Design: Three Position
Air Intake Pressure - Maximum: 120 psi
Air Consumption - Maximum: 9 scfm
Control Valve Function: Advance, Hold, Retract
Air Intake Connection Type: FNPT
Flow Rate - Maximum: 8 cu in/min
Sound Level - Maximum: 85 dBA
Reservoir Capacity: 80 cu in
Operating Pressure - Maximum: 10,000 psi
Displacement @ 10,000 PSI: 8 cu in/min

Description

Hydraulic Pump, Reservoir Capacity 80 cu in, Air Intake Pressure - Maximum 120 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 8 cu in/min, Sound Level - Maximum 85 dBA, Actuation Type Foot, Hand, Air Consumption - Maximum 9 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Features Ergonomic Design, Flow Rate - Maximum 8 cu in/min, Media Intake Connection Size 3/8 in, Overall Height 8.3 in
