  11. PACG3002SB, Turbo II Air Hydraulic Pump, Remote Valve Mount, 180 in3/min Oil Flow at 100 psi
Shop All Air Hydraulic Pumps
Enerpac

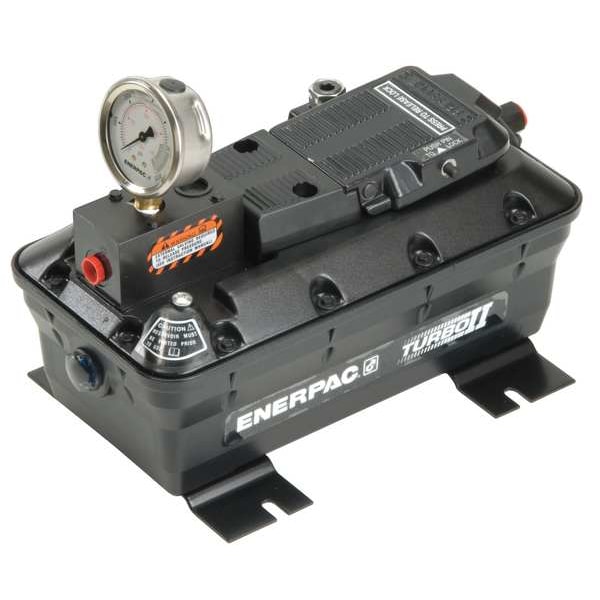

PACG3002SB, Turbo II Air Hydraulic Pump, Remote Valve Mount, 180 in3/min Oil Flow at 100 psi

product price: $1,273.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Oil Capacity (Cu.-In.) 127 cu in
  • Reservoir Capacity (Gal.) 0.65 gal
  • Oil Displacement @ 0 PSI 180.00 cu in/min
  • Operating Air PSI 50 to 125
See all product information

Product Information

Dimensions

Height (In.) 9.61 in
Width (In.) 8 in
Length (In.) 12.4 in
Air Intake Connection Size 1/4 in
Overall Height 8 in
Overall Width 12.4 in
Overall Length 10 in

Details

Promotion Restriction Not eligible for promotion
Item Hydraulic Pump
Oil Capacity (Cu.-In.) 127 cu in
Reservoir Capacity (Gal.) 0.65 gal
Oil Displacement @ 0 PSI 180.00 cu in/min
Operating Air PSI 50 to 125
Air Consumption (SCFM) 12
Actuation Type Pendant
Capacity (PSI) 1250 to 5000
Fluid Port NPT (In.) #4 SAE
dBA 75
Type Air Powered
Includes Gauge and Bracket
Usable Oil Capacity Horizontal Mount 127 cu in
Treadle Two Position
Air Inlet NPT (In.) 1/4 Female
Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Usable Oil Capacity Vertical Mount 70 cu in
Reservoir Capacity 0.53 gal
Air Intake Pressure - Maximum 125 psi
Operating Pressure - Maximum 5,000 psi
Treadle Design Two Position
Flow Rate - Maximum 180 cu in/min
Air Consumption - Maximum 12 scfm
Sound Level - Maximum 75 dBA
Displacement @ 5000 psi 180 cu in/min
Air Intake Connection Type FNPT

Description

Hydraulic Pump, Reservoir Capacity 0.53 gal, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 5,000 psi, Displacement @ 5000 psi 180 cu in/min, Sound Level - Maximum 75 dBA, Actuation Type Pendant, Air Consumption - Maximum 12 scfm, Air Intake Connection Type FNPT, Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve, Flow Rate - Maximum 180 cu in/min, Overall Height 8 in, Overall Length 10 in, Overall Width 12.4 in
