PUJ1201B Hyrdaulic Electric Pump, 10,000 psi Max Pressure, 0.5 hp, Universal Motor, High Force
Mfr # PUJ1201B
Zoro # G2677464
product price:Â $5,606.99
/ea
Free Shipping & Returns
Key Features
Type
High Force
Reservoir Capacity (Cu.-In.)
231 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 100 PSI
200 cu in/min
Oil Displacement @ 700 PSI
70 cu in/min
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PUJ1201B
- Zoro #
- G2677464
- UPC #
- 662005106578
- Country of Origin
- United States
Dimensions
- Control Pendant Size (Ft.)
- 10 ft
- Overall Width
- 12.2 in
- Control Pendant Size
- 10 ft
- Overall Length
- 14.5 in
- Remote Control Cord Length
- 10 ft
- Media Intake Connection Size
- 1/4 in
- Overall Height
- 14.7 in
- Wire Rope Length
- 14.5 in
Description

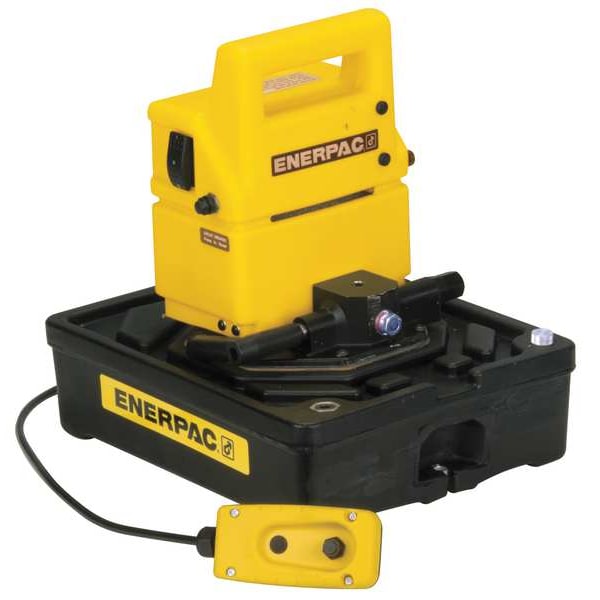

The Enerpac PUJ1201B is a two-speed hydraulic electric pump from the PU-Series Economy line. This model is configured with a 1-gallon reservoir and a 3-way, 2-position manual valve specifically for operating single-acting cylinders. It utilizes a 0.50 hp universal motor.
Performance and Displacement:
- Pressure Rating: Provides a maximum operating pressure of 10,000 psi.
- Two-Speed Displacement: Delivers 200 cu in/min at low pressure (0-200 psi) and 20 cu in/min at the rated pressure of 10,000 psi.
- Displacement Intervals: Specifically outputs 70 cu in/min at 700 psi, 30 cu in/min at 1,000 psi, and 25 cu in/min at 5,000 psi. Control and Valve Operation:
- Manual Valve Function: The 3/2 manual valve provides Advance, Hold, and Retract positions for precise tool operation.
- Remote Control: Includes a 10-foot pendant for remote motor control, operating at 24 VAC to enhance safety.
- Gauge Port: Features an integrated 1/4" NPTF gauge port for the addition of pressure monitoring accessories. Construction and Physical Data:
- Portability: Built with a high-strength molded shroud and an integral handle, with a total weight of 35 lbs.
- Dimensions: Measures 14.5 inches in length, 12.2 inches in width, and 14.7 inches in height.
- Connections: Equipped with standard 3/8" NPTF fluid ports.
