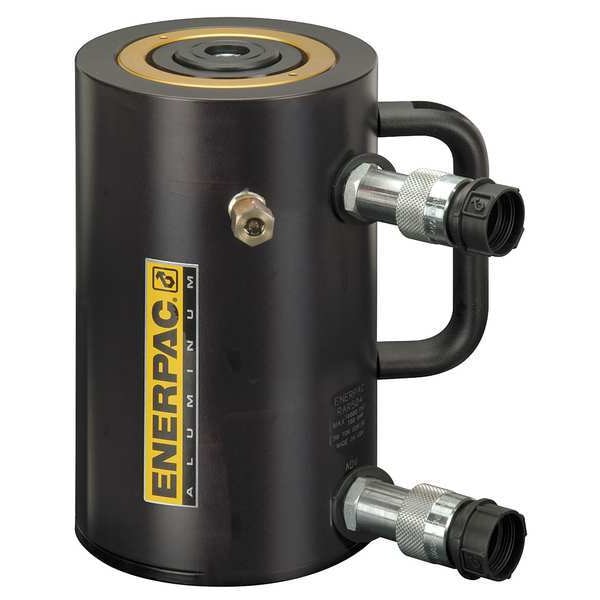

RAR506, 50 ton Capacity, 5.91 in Stroke, Double-Acting, Aluminum Hydraulic Cylinder

Enerpac RAR506,  50 ton Capacity,  5.91 in Stroke,  Double-Acting,  Aluminum Hydraulic Cylinder RAR506
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$3,609.13
  • Promotion Restriction: Not eligible for promotion
  • Item: Hydraulic Ram
  • Stroke Length: 5 7/8 in
See full product details
This item ships free.
Total: $3,609.13

Enerpac #RAR506 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Item: Hydraulic Ram
  • Stroke Length: 5 7/8 in
  • Max. Pressure: 10,000 psi
  • Thread Size: M6
  • Handle: Yes
  • Retracted Height: 11.86 in
  • Bolt Circle Dia.: 4.33"
  • Center Hole Dia.: 3 3/4 in
  • Extended Height: 17.76 in
  • Cylinder Type: Lightweight
  • Oil Capacity: 64.88 cu. in.
  • Effective Area: 10.99 sq. in.
  • Body Material: Aluminum
  • Plunger Dia.: 64.88 cu in
  • Single Acting/Double Acting: Double Acting
  • Weight Capacity: 50 tons
  • Outside Dia.: 5.71 in
  • Includes: Coupler, Dust Cap
  • Nominal Stroke Length: 6 in
  • Effective Push Area: 10.99 sq in
  • Nominal Capacity: 50 ton
  • Oil Capacity Push: 64.95 cu in
  • Series: RAR
  • Base Bolt Circle Dia.: 4.33 in
  • Max. Push Capacity: 50 ton
  • Country of Origin (subject to change): India
Feedback Help us improve our product information

Description

  • Double-acting for rapid retraction, regardless of hose lengths and system losses
  • Composite bearings increase cylinder life and side load resistance
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Steel base plate and saddle for protection against load- induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • Built-in safety valve prevents accidental over-pressurization
