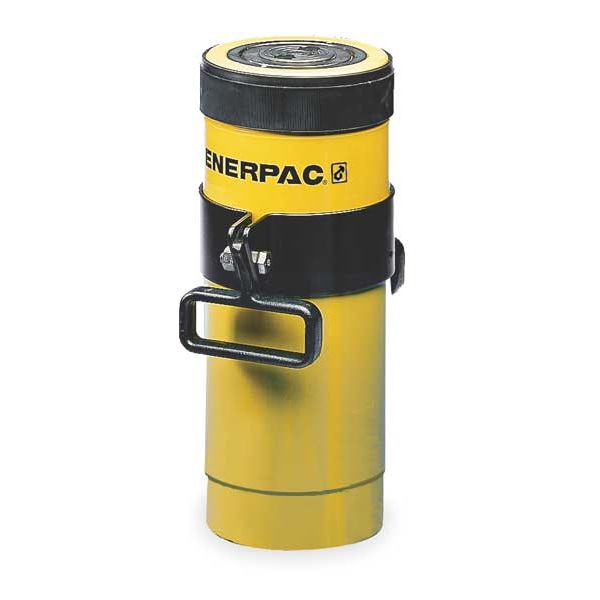

RC5013, 55.2 ton Capacity, 13.25 in Stroke, General Purpose Hydraulic Cylinder
Mfr # RC5013
Zoro # G0907891
product price: $3,688.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
10,000 psi
Thread Size
1/2"-13
Retracted Height
18.13 in
Body Material
Steel
Single Acting/Double Acting
Single Acting
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RC5013
Zoro #
G0907891
UPC #
662005301706
Country of Origin
China
Dimensions
Thread Size
1/2"-13
Retracted Height
18.13 in
Center Hole Dia.
3 1/8 in
Stroke Length
13 1/4 in
Plunger Dia.
3.13 in
Extended Height
31.37 in
Outside Dia.
5 in
Bolt Circle Dia.
3.75"
Base Bolt Circle Dia.
3.75 in
Nominal Stroke Length
13 in
Collar Thread Size
5"-12
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 50 ton, Max. Push Capacity 50 ton, Stroke Length 13 1/4 in, Nominal Stroke Length 13 in, Effective Push Area 11.04 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 146.34 cu in, Retracted Height 18.13 in, Extended Height 31.37 in, Outside Dia. 5 in, Plunger Dia. 3.13 in, Base Bolt Circle Dia. 3.75 in, Center Hole Dia. 3 1/8 in, Series RC, Includes Coupler, Dust Cap
