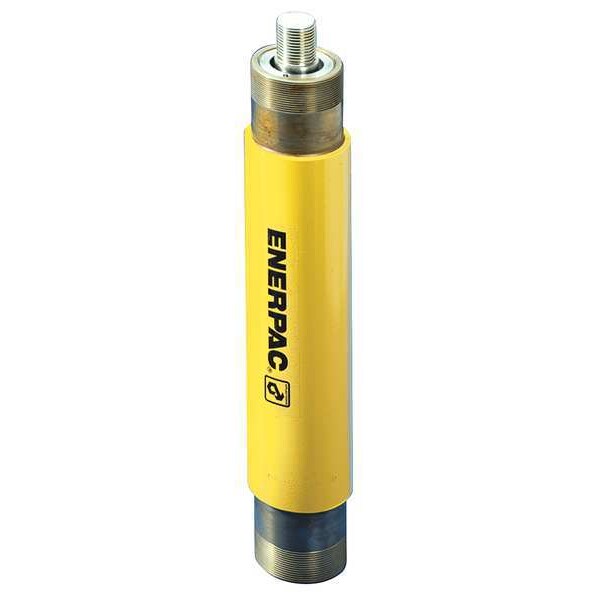

RD1610, 16 ton Capacity Capacity, 10.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Mfr # RD1610
Zoro # G5569977
product price: $3,184.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
2 in
Stroke Length
10 1/4 in
Max. Pressure
10,000 psi
Weight Capacity
16 tons
Cylinder Type
High Cycle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RD1610
Zoro #
G5569977
UPC #
662005305537
Country of Origin
China
Dimensions
Bore Dia.
2 in
Stroke Length
10 1/4 in
Plunger Thread Size
1-1/2"-12
Extended Height
29.56 in
Center Hole Dia.
1 1/8 in
Retracted Height
19.31 in
Outside Dia.
3 in
Plunger Dia.
1.38 in
Collar Thread Size
2-5/8"-16
Nominal Stroke Length
10 in
Description
Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 15 ton, Max. Push Capacity 16 ton, Stroke Length 10 1/4 in, Nominal Stroke Length 10 in, Effective Push Area 3.14 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 32.2 cu in, Retracted Height 19.31 in, Extended Height 29.56 in, Outside Dia. 3 in, Plunger Dia. 1.38 in, Plunger Thread Size 1-1/2 In.-12, Collar Thread Size 2-5/8 In.-16, Center Hole Dia. 1 1/8 in, Series RD
