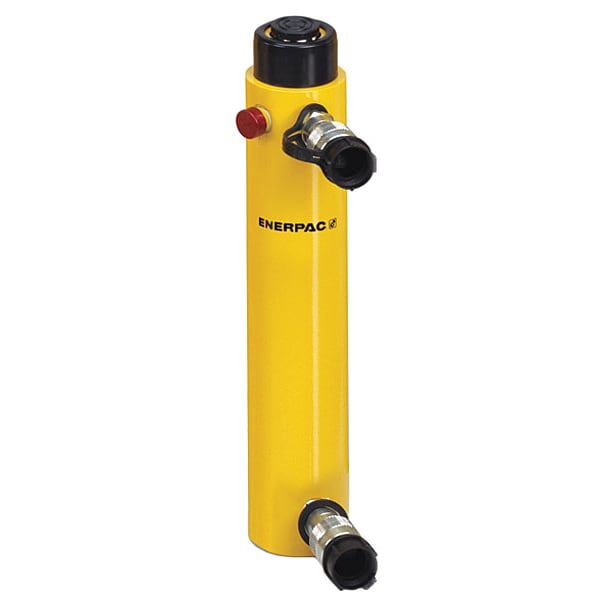

RR1010, 11.1 ton Capacity, 10.00 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Mfr # RR1010
Zoro # G6862466
product price: $2,123.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
1.69 in
Stroke Length
10 in
Max. Pressure
10,000 psi
Outside Dia.
2.88 in
Center Hole Dia.
5 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RR1010
Zoro #
G6862466
UPC #
662005303298
Country of Origin
United States
Dimensions
Bore Dia.
1.69 in
Stroke Length
10 in
Outside Dia.
2.88 in
Center Hole Dia.
5 1/8 in
Plunger Dia.
1.38 in
Bolt Circle Dia.
2.05"
Retracted Height
16.13 in
Collar Thread Size
2-3/4"-14
Thread Size
2"-12
Plunger Thread Size
1"-8
Extended Height
26.13 in
Base Bolt Circle Dia.
2.05 in
Nominal Stroke Length
10 in
Description
Hydraulic Ram, Double Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 10 in, Nominal Stroke Length 10 in, Effective Push Area 2.23 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 22.33 cu in, Retracted Height 16.13 in, Extended Height 26.13 in, Outside Dia. 2.88 in, Plunger Dia. 1.38 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-3/4 In.-14, Base Bolt Circle Dia. 2.05 in, Center Hole Dia. 5 1/8 in, Series RR
