Shop ENERPAC

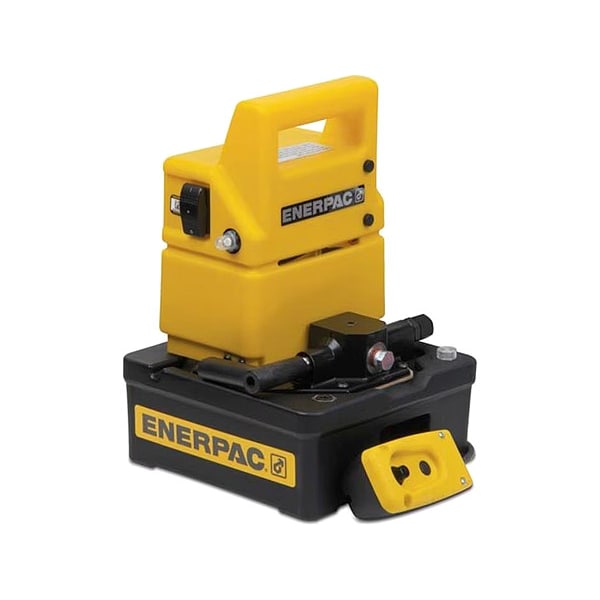

Hydraulic Electric Pump, High Force, 0.5 hp, Universal Motor, 10,000 psi Max Pressure

  • Mfr # PUJ1200B
  • Zoro # G0285442
product price:
$
5,414.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Type
High Force
Reservoir Capacity (Cu.-In.)
115 cu in
Reservoir Capacity (Gal.)
0.5 gal
Oil Displacement @ 100 PSI
200 cu in/min
Oil Displacement @ 700 PSI
70 cu in/min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PUJ1200B
Zoro #
G0285442
UPC #
662005106523
Country of Origin
United States
Item
Hydraulic Electric Pump
Type
High Force
Reservoir Capacity (Cu.-In.)
115 cu in
Reservoir Capacity (Gal.)
0.5 gal
Oil Displacement @ 100 PSI
200 cu in/min
Oil Displacement @ 700 PSI
70 cu in/min
Oil Displacement @ 5000 PSI
25 cu in/min
Oil Displacement @ 10,000 PSI
20 cu in/min
Oil Displacement @ 0-200 PSI
200 cu in/min
HP
0.5 hp
Maximum Pressure
10,000 psi
Motor Type
Universal
Control Valve
3 Way/2 Position
Voltage
115
Oil Displacement @ 200-10,000 PSI
20 cu in/min
Fluid Port NPT (In.)
3/8
Control Pendant Voltage
Manual
Application
A Quick and Convenient Power Source for Cylinders and Presses, Intended for Intermittent Use Under 1 Hour
Amps AC
9.5 A
Reservoir Material
Polyethylene
dBA
85
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
25 cu in/min
Control Valve Function
Advance, Hold, Retract
Horsepower - Maximum
1/2 hp
Media Intake Connection Type
NPTF
Displacement @ 5000 psi
25 cu in/min
Current
9.5 A
Displacement @ 200 psi
200 cu in/min
Displacement @ 100 psi
200 cu in/min
Displacement @ 10,000 PSI
20 cu in/min
Displacement @ 700 psi
70 cu in/min
Sound Level - Maximum
85 dBA
Control Valve Type
2-Position, 3-Way
Frequency
50 Hz, 60 Hz
Operating Pressure - Maximum
10,000 psi
Cylinder Compatibility
Single Acting
Displacement @ 1000 psi
30 cu in/min
Flow Rate - Maximum
20 cu in/min
Reservoir Capacity
0.5 gal
Nameplate Voltage
115V AC
Duty Cycle
Intermittent

Description

Hydraulic Electric Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 25 cu in/min, Displacement @ 10,000 PSI 20 cu in/min, Control Valve Type 2-Position, 3-Way, Reservoir Capacity 0.5 gal, Reservoir Material Polyethylene, Overall Height 14.3 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
