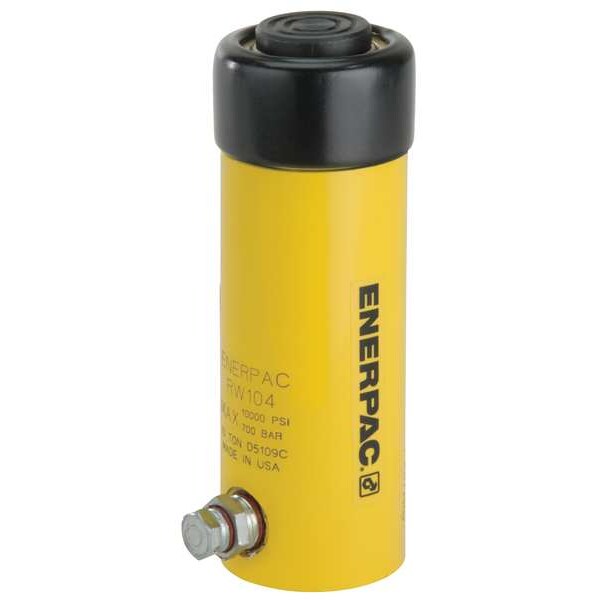

RW104, 11180 lbs Capacity, 4.18 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model
Mfr # RW104
Zoro # G0738342
product price: $596.99
/ea
Free Shipping & Returns
Key Features
Thread Size
5/16"-18
Oil Capacity
9.21 cu. in.
Includes
Saddle
Cylinder Type
General Purpose
Collar Thread Size
2-1/4"-14
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RW104
Zoro #
G0738342
UPC #
662005125258
Country of Origin
China
Dimensions
Thread Size
5/16"-18
Collar Thread Size
2-1/4"-14
Stroke Length
4 1/8 in
Outside Dia.
2.25 in
Plunger Dia.
1.5 in
Extended Height
10.88 in
Center Hole Dia.
1 1/2 in
Retracted Height
6.75 in
Bolt Circle Dia.
1.56"
Plunger Thread Size
1"-8
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
4 in
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 4 1/8 in, Nominal Stroke Length 4 in, Effective Push Area 2.23 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 9.21 cu in, Retracted Height 6.75 in, Extended Height 10.88 in, Outside Dia. 2.25 in, Plunger Dia. 1.5 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-1/4 In.-14, Base Bolt Circle Dia. 1.56 in, Center Hole Dia. 1 1/2 in, Series RW, Includes Saddle
