  11. RW50, 4970 lbs Capacity, .62 in Stroke, General Purpose Hydraulic Cylinder, Block Model
Shop All Single Acting Hydraulic Cylinders
Enerpac

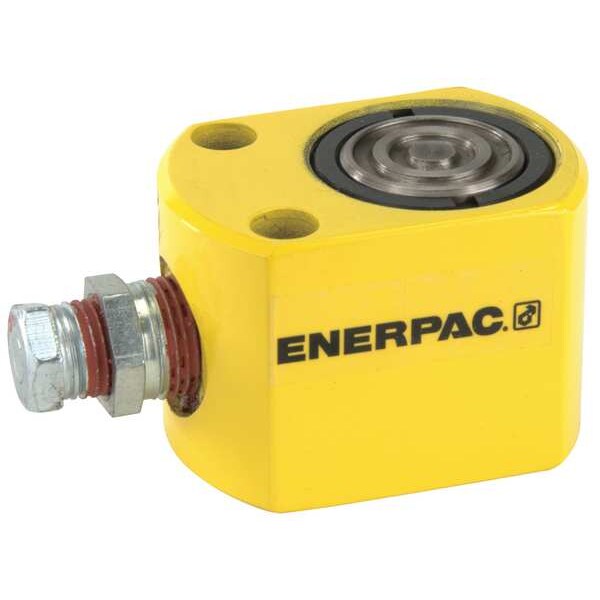

RW50, 4970 lbs Capacity, .62 in Stroke, General Purpose Hydraulic Cylinder, Block Model

Hover or click to zoom Tap to zoom
Key Features
  • Promotion Restriction: Not eligible for promotion
  • Cylinder Type: General Purpose
  • Stroke Length: 5/8 in
  • Thread Size: 1/4"-20
  • Oil Capacity: 0.62 cu. in.
  • Single Acting/Double Acting: Single Acting
  • Body Material: Steel
  • Item: Hydraulic Ram
See full product details
$414.87
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Stroke Length 5/8 in
Thread Size 1/4"-20
Extended Height 2.25 in
Retracted Height 1.63 in
Nominal Stroke Length 5/8 in

Details

Promotion Restriction Not eligible for promotion
Cylinder Type General Purpose
Oil Capacity 0.62 cu. in.
Single Acting/Double Acting Single Acting
Body Material Steel
Item Hydraulic Ram
Effective Area 0.99 sq. in.
Plunger Dia. 1.12 in
Handle No
Center Hole Dia. 1 in
Outside Dia. 1.62 in x 2.31 in
Includes Saddle
Weight Capacity 5 tons
Max. Pressure 10,000 psi
Nominal Capacity 5 ton
Oil Capacity Push 0.62 cu in
Max. Push Capacity 5 ton
Series RW
Effective Push Area 0.99 sq in

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 5 ton, Max. Push Capacity 5 ton, Stroke Length 5/8 in, Nominal Stroke Length 5/8 in, Effective Push Area 0.99 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 0.62 cu in, Retracted Height 1.63 in, Extended Height 2.25 in, Outside Dia. 1.62 in x 2.31 in, Plunger Dia. 1.12 in, Center Hole Dia. 1 in, Series RW, Includes Saddle
