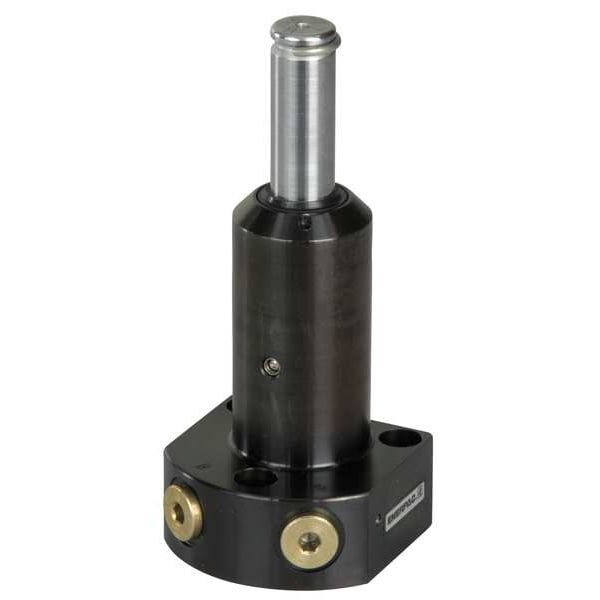

SLLD51, 1250 lbs Force, Swing Clamp, Double-Acting, Left Turning, Lower Flange
Mfr # SLLD51
Zoro # G3002991
product price: $672.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
1,250 lbf
Total Stroke
0.89 in
Clamping Stroke
0.39 in
Effective Area Clamped
0.28 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLLD51
Zoro #
G3002991
UPC #
662005308323
Country of Origin
United States
Dimensions
Port Size
#4 SAE
Extended Height
5.31 in
Mounting Hole Dia.
0.27 in
Bolt Size
1/4"-28
Outside Dia.
1.37 in
Min. Hole Depth
0.75 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 1,250 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.52 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi
