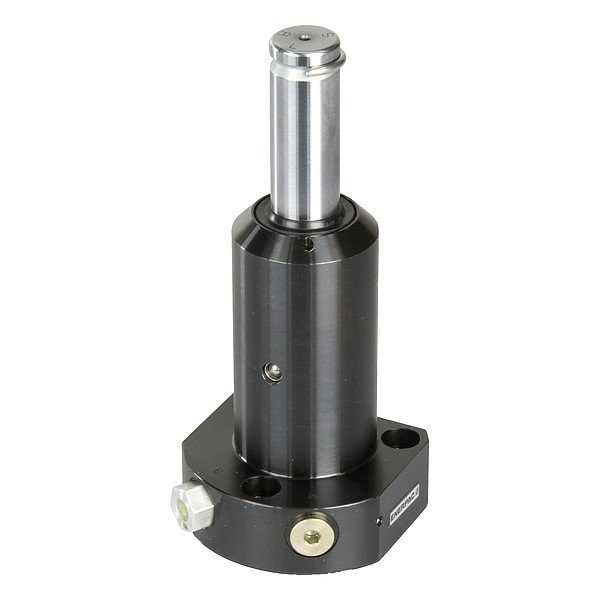

Swing Clamp
Mfr # SLLS201
Zoro # G715487612
product price:Â $1,168.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
3,900 lbf
Total Stroke
1.16 in
Clamping Stroke
0.55 in
Effective Area Clamped
1.10 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SLLS201
- Zoro #
- G715487612
- UPC #
- 0662005231324
- Country of Origin
- United States
Dimensions
- Mounting Hole Dia.
- 0.33 in
- Outside Dia.
- 2.51 in
- Port Size
- #4 SAE
- Extended Height
- 8.96 in
- Stroke Length
- 1 5/32 in
- Flange Width
- 2 3/4 in
- Flange Thickness
- 49/50 in
- Mounting Hole Spacing - Length
- 2 5/32 in
- Flange Length
- 3 11/32 in
- Mounting Hole Size
- 11/32 in
- Retracted Height
- 7.8 in
- Mounting Hole Spacing - Width
- 2 5/32 in
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 3,900 lbf, Total Stroke 1.16 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 1.22 cu in, Max. Oil Flow 140 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 8.96 in, Outside Dia. 2.51 in, Mounting Hole Dia. 0.33 in
