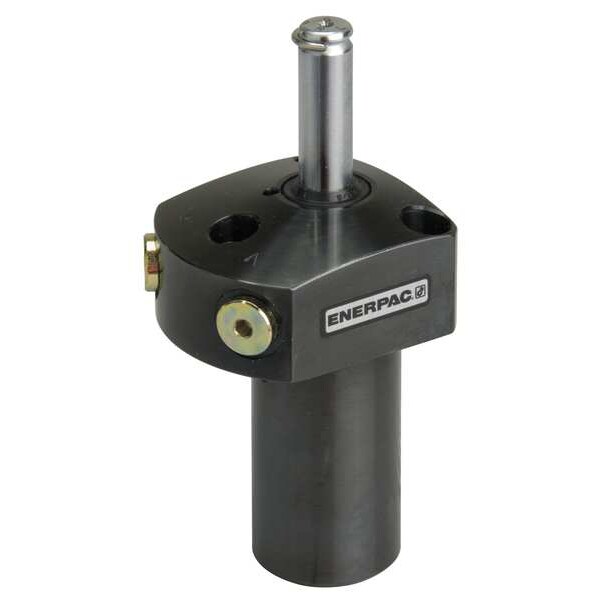

Swing Cylinder, Upper Flange, 500 lb

ENERPAC| Zoro #: G1948353| Mfr #: SURD21

$504.64 /ea

This item ships free. DetailsStandard ground shipping
Includes: Mounting Bolts and Arm C-Clip
Item: Hydraulic Cylinder
Material of Construction: Steel
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G1948353 Mfr #: SURD21
Item: Hydraulic CylinderType: Swing
Swing Angle: 90 deg.Material of Construction: Steel
Effective Area Unclamped: 0.24 sq. in.Function: Double Acting
Effective Area Clamped: 0.12 sq. in.Body Style: Upper Flange
Max. Oil Flow: 12 cu. in./min.Outside Dia.: 1.10"
Mounting Hole Dia.: 0.225"Includes: Mounting Bolts and Arm C-Clip
Min. Hole Depth: 0.63"Bolt Size: #10-32
Turns: RightClamping Force: 500 lb.
Port Size: #2 SAEExtended Height: 4.41"
Number of Bolts: 3Oil Capacity Unclamped: 0.15 cu. in.
Stroke: 0.65"Oil Capacity Clamped: 0.08 cu. in.
Pressure Range: 500 to 5000 psiCountry of Origin (subject to change): United States

Product Description

Hydraulic Cylinder, Swing, Material of Construction Steel, Body Style Upper Flange, Function Double Acting, Turns Right, Swing Angle 90 Degrees, Clamping Force 500 lb., Stroke 0.65", Port Size #2 SAE, Effective Area Clamped 0.12 sq. in., Effective Area Unclamped 0.24 sq. in., Max. Oil Flow 12 cu. in./min., Pressure Range 500 to 5000 psi, Extended Height 4.41", Outside Dia. 1.10", Mounting Hole Dia. 0.225", Min. Hole Depth 0.63"
