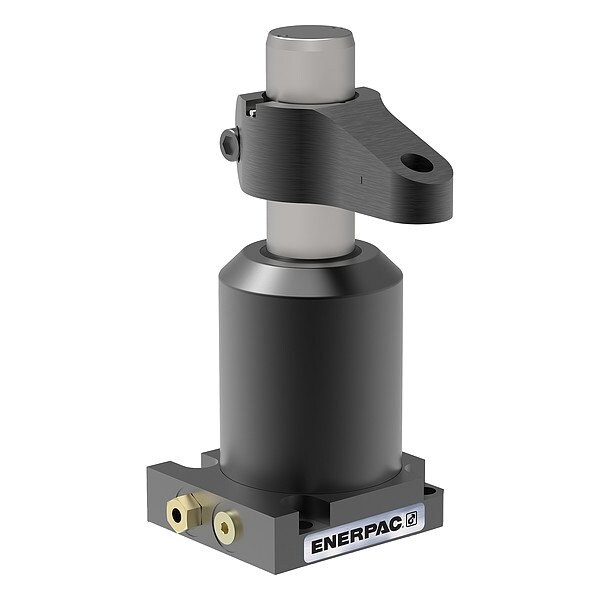

Swing Clamp
Mfr # SLLS351
Zoro # G915487597
product price: $1,644.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
7,450 lbf
Total Stroke
1.28 in
Clamping Stroke
0.63 in
Effective Area Clamped
1.92 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLLS351
Zoro #
G915487597
UPC #
0662005231331
Country of Origin
United States
Dimensions
Extended Height
10.13 in
Mounting Hole Dia.
0.43 in
Port Size
#4 SAE
Outside Dia.
3.14 in
Flange Thickness
49/50 in
Mounting Hole Spacing - Length
2 3/4 in
Retracted Height
8.85 in
Flange Length
3 15/16 in
Flange Width
3 1/2 in
Mounting Hole Size
7/16 in
Mounting Hole Spacing - Width
2 3/4 in
Stroke Length
1 9/32 in
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Single Acting, Turns Straight, Clamping Force 7,450 lbf, Total Stroke 1.28 in, Effective Area Clamped 1.92 sq in, Clamping Stroke 0.63 in, Max. Pressure 5,000 psi, Swing Angle 0 Degrees , Port Size #4 SAE, Oil Capacity Clamped 2.27 cu in, Max. Oil Flow 240 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 10.13 in, Outside Dia. 3.14 in, Mounting Hole Dia. 0.43 in
