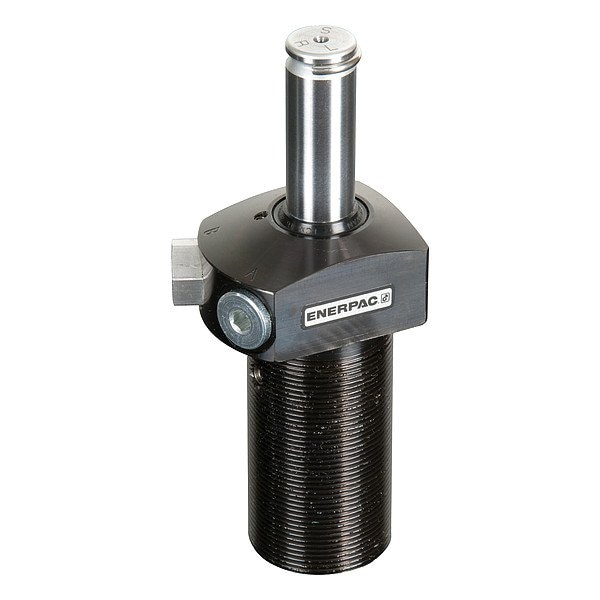

Swing Clamp
Mfr # STLD201
Zoro # G115487724
product price: $1,013.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
4,200 lbf
Total Stroke
1.16 in
Clamping Stroke
0.55 in
Effective Area Clamped
1.10 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
STLD201
Zoro #
G115487724
UPC #
0662005231423
Country of Origin
United States
Dimensions
Extended Height
7.91 in
Outside Dia.
2.5 in
Port Size
#4 SAE
Retracted Height
6.75 in
Stroke Length
1 5/32 in
Flange Thickness
1 13/50 in
Flange Length
3 in
Flange Width
2 9/16 in
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 4,200 lbf, Total Stroke 1.16 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 2.35 sq in, Oil Capacity Clamped 1.22 cu in, Oil Capacity Unclamped 2.6 cu in, Max. Oil Flow 140 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 7.91 in
