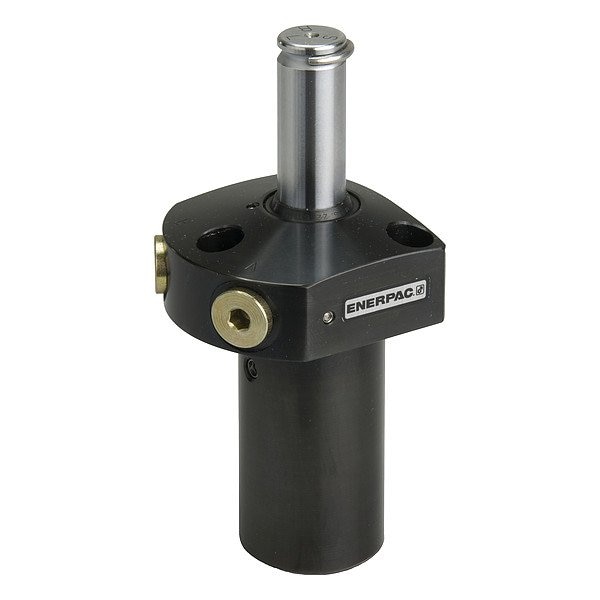

Swing Clamp
Mfr # SURD92
Zoro # G615487583
product price: $1,066.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
2,025 lbf
Total Stroke
0.9 in
Clamping Stroke
0.47 in
Effective Area Clamped
0.49 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SURD92
Zoro #
G615487583
UPC #
0662005108985
Country of Origin
United States
Dimensions
Mounting Hole Dia.
0.26 in
Extended Height
6.58 in
Outside Dia.
1.88 in
Port Size
G 1/4 in
Bolt Size
M6
Mounting Hole Spacing - Width
1 21/32 in
Flange Width
2 1/8 in
Flange Thickness
1 in
Mounting Hole Spacing - Length
1 21/32 in
Retracted Height
5.68 in
Mounting Hole Size
1/4 in
Flange Length
2 3/4 in
Stroke Length
29/32 in
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 2,025 lbf, Total Stroke 0.9 in, Effective Area Clamped 0.49 sq in, Clamping Stroke 0.47 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size G 1/4 in, Effective Area Unclamped 1.25 sq in, Oil Capacity Clamped 0.42 cu in, Oil Capacity Unclamped 1.08 cu in, Max. Oil Flow 60 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 6.58 in
