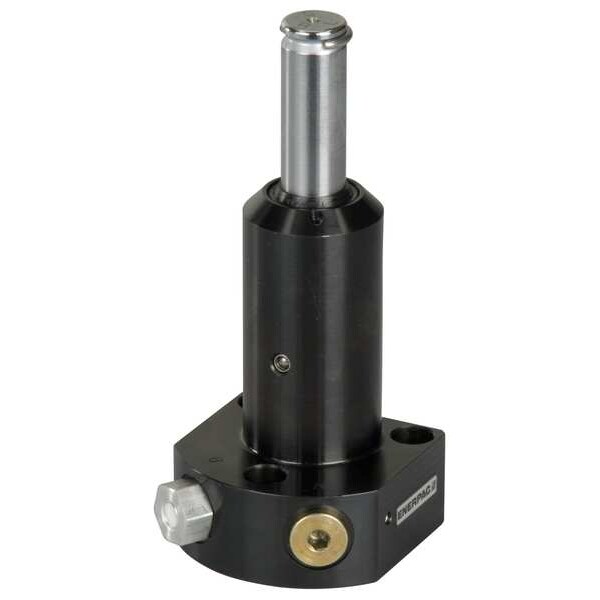

Swing Cylinder, Lower Flange, 1100 lb
Mfr # SLLS51
Zoro # G3469961
product price: $672.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
1,100 lbf
Total Stroke
0.89 in
Clamping Stroke
0.39 in
Effective Area Clamped
0.28 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLLS51
Zoro #
G3469961
UPC #
662005308354
Country of Origin
United States
Dimensions
Bolt Size
1/4"-28
Mounting Hole Dia.
0.27 in
Port Size
#4 SAE
Min. Hole Depth
0.75 in
Extended Height
5.31 in
Outside Dia.
1.37 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 1,100 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 0.25 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi, Extended Height 5.31 in, Outside Dia. 1.37 in, Mounting Hole Dia. 0.27 in
