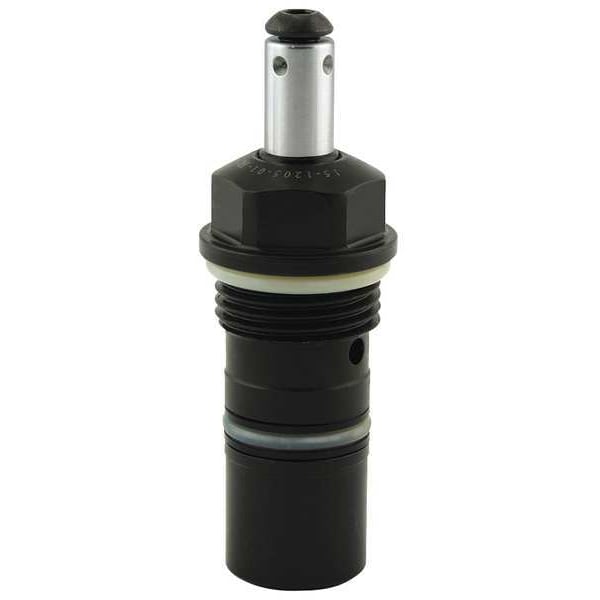

Hyd. Clamp, Swing, Cartridge Mount, 450 lb.
Mfr # 15-1205-02-R
Zoro # G9244435
product price:Â
$
587.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
450 lbf
Total Stroke
0.57 in
Clamping Stroke
0.22 in
Effective Area Clamped
0.098 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 15-1205-02-R
- Zoro #
- G9244435
- UPC #
- -
- Country of Origin
- United States
- Item
- Swing Clamp Hydraulic Cylinders
- Single Acting/Double Acting
- Double Acting
- Clamping Force
- 450 lbf
- Total Stroke
- 0.57 in
- Clamping Stroke
- 0.22 in
- Effective Area Clamped
- 0.098 sq in
- Turns
- Right
- Max. Pressure
- 5,000 psi
- Swing Angle
- 90 Degrees
- Oil Capacity Unclamped
- 0.142 cu in
- Stroke
- 0.22" Verticle/0.57" Total
- Material of Construction
- Steel
- Type
- Swing
- Function
- Double Acting
- Oil Capacity Clamped
- 0.056 cu in
- Pressure Range
- 500 to 5000 psi
- Body Style
- Cartridge Mount
- Mounting Thread
- 1-1/16"-12
- Max. Oil Flow
- 1.5 gpm
- Product Type
- Swing Clamp Hydraulic Cylinders
Description
Swing Clamp Hydraulic Cylinders, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 450 lbf, Total Stroke 0.57 in, Effective Area Clamped 0.098 sq in, Clamping Stroke 0.22 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #2 SAE, Oil Capacity Clamped 0.056 cu in, Oil Capacity Unclamped 0.142 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 4.25 in, Outside Dia. 0.938 in, Mounting Hole Dia. 1.15 in, Mounting Thread 1-1/16 In.-12
