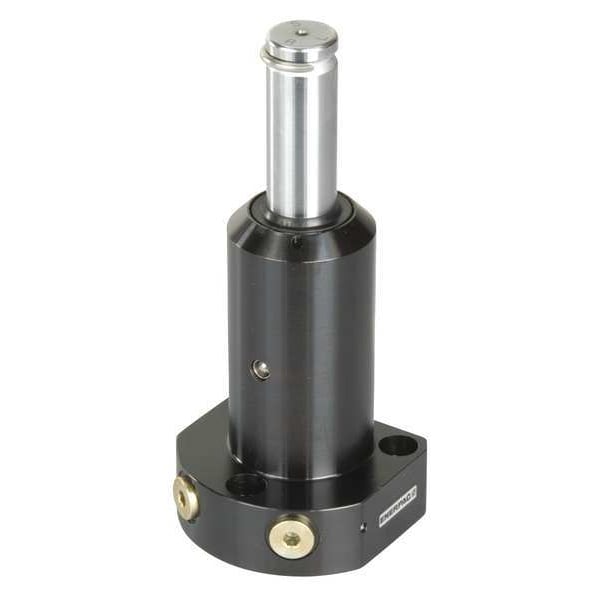

Swing Cylinder, Lower Flange, 7600 lb.
Mfr # SLRD351
Zoro # G6671427
product price:Â $1,276.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
7,600 lbf
Total Stroke
1.28 in
Clamping Stroke
0.63 in
Effective Area Clamped
1.92 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SLRD351
Zoro #
G6671427
UPC #
662005231355
Country of Origin
United States
Dimensions
Outside Dia.
3.94 in
Bolt Size
3/8"-24
Extended Height
7.77 in
Mounting Hole Dia.
3.04 in
Min. Hole Depth
0.74 in
Port Size
0.4375-20 UNF-2B
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 7,600 lbf, Total Stroke 1.28 in, Effective Area Clamped 1.92 sq in, Clamping Stroke 0.63 in, Max. Pressure 5,000 psi, Series SLR, Swing Angle 90 Degrees , Port Size 0.4375-20 UNF-2B, Effective Area Unclamped 3.68 sq in, Oil Capacity Clamped 2.27 cu in, Oil Capacity Unclamped 4.35 cu in, Max. Oil Flow 240 cu in/min
