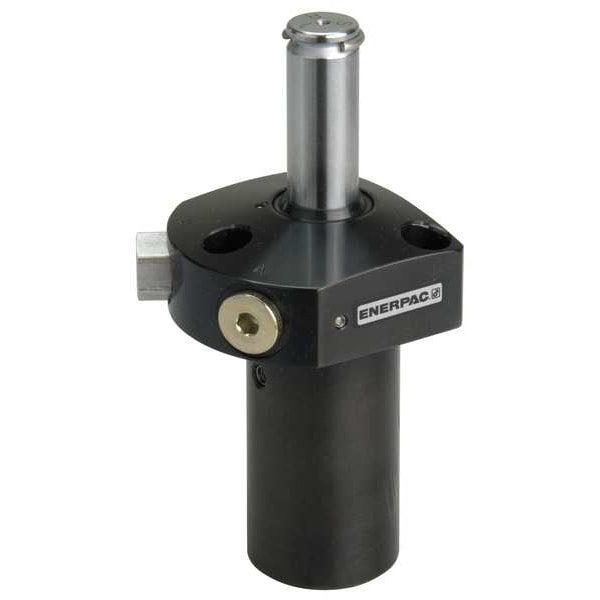

Swing Cylinder, Upper Flange, 1100 lb
  • Zoro #: G0244946
  • Mfr #: SURS51
$588.00
  • Pressure Range: 500 to 5000 psi
  • Includes: Mounting Bolts and Arm C-Clip
  • Material of Construction: Steel
See full product details
This item ships free.

Enerpac #SURS51 Specifications

  • Zoro #: G0244946
  • Mfr #: SURS51
Pressure Range: 500 to 5000 psi Includes: Mounting Bolts and Arm C-Clip
Material of Construction: Steel Mounting Hole Dia.: 0.268"
Stroke: 0.89" Port Size: #4 SAE
Number of Bolts: 3 Max. Oil Flow: 25 cu. in./min.
Function: Single Acting Clamping Force: 1100 lb.
Item: Swing Clamp Hydraulic Cylinder Body Style: Upper Flange
Min. Hole Depth: 0.75" Oil Capacity Unclamped: 0.52 cu. in.
Swing Angle: 90 Degrees Outside Dia.: 1.37"
Bolt Size: 1/4"-28 Turns: Right
Type: Swing Oil Capacity Clamped: 0.25 cu. in.
Effective Area Unclamped: 0.59 sq. in. Extended Height: 5.31"
Effective Area Clamped: 0.28 sq. in. Series: SU
Max. Pressure: 5000 psi Mounting Style: Upper Flange
Cylinder Type: Swing Clamping Stroke: 0.39"
Single Acting/Double Acting: Single Acting Total Stroke: 0.89"
Body Material: Steel Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Swing Clamp Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Single Acting, Turns Right, Clamping Force 1100 lb., Total Stroke 0.89 In., Effective Area Clamped 0.28 sq. in., Clamping Stroke 0.39 In., Max. Pressure 5000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq. in., Oil Capacity Clamped 0.25 cu. in., Oil Capacity Unclamped 0.52 cu. in., Max. Oil Flow 25 cu. in./min., Pressure Range 500 to 5000 psi
