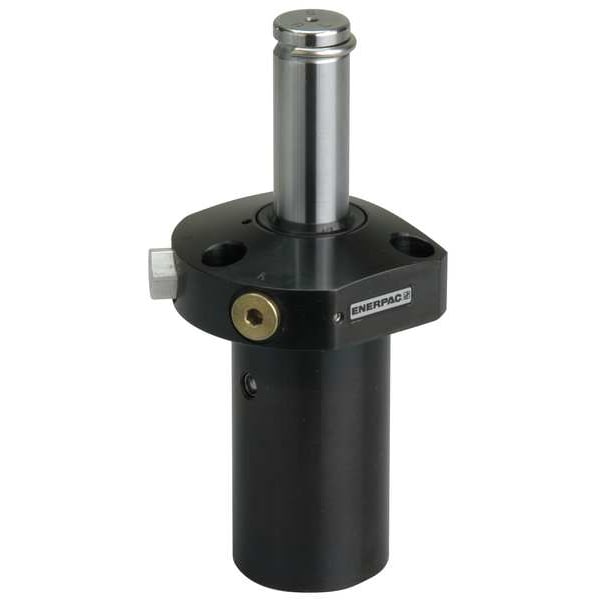

Swing Cylinder, Upper Flange, 2400 lb

ENERPAC| Zoro #: G0727377| Mfr #: SULS121

$533.03 /ea

This item ships free. DetailsStandard ground shipping
Details:
Material of Construction: Steel
Oil Capacity Clamped: 0.70 cu. in.
Effective Area Clamped: 0.63 sq. in.
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G0727377 Mfr #: SULS121
Material of Construction: SteelOil Capacity Clamped: 0.70 cu. in.
Effective Area Clamped: 0.63 sq. in.Outside Dia.: 1.88"
Mounting Hole Dia.: 0.347"Swing Angle: 90 deg.
Clamping Force: 2400 lb.Includes: Mounting Bolts and Arm C-Clip
Effective Area Unclamped: 1.23 sq. in.Port Size: #4 SAE
Oil Capacity Unclamped: 1.40 cu. in.Number of Bolts: 3
Pressure Range: 500 to 5000 psiType: Swing
Body Style: Upper FlangeTurns: Left
Min. Hole Depth: 0.88"Max. Oil Flow: 100 cu. in./min.
Bolt Size: 5/16"-24Item: Hydraulic Cylinder
Function: Single ActingStroke: 1.12"
Extended Height: 6.75"Country of Origin (subject to change): United States

Product Description

Hydraulic Cylinder, Swing, Material of Construction Steel, Body Style Upper Flange, Function Single Acting, Turns Left, Swing Angle 90 Degrees, Clamping Force 2400 lb., Stroke 1.12", Port Size #4 SAE, Effective Area Clamped 0.63 sq. in., Effective Area Unclamped 1.23 sq. in., Max. Oil Flow 100 cu. in./min., Pressure Range 500 to 5000 psi, Extended Height 6.75", Outside Dia. 1.88", Mounting Hole Dia. 0.347", Min. Hole Depth 0.88"
