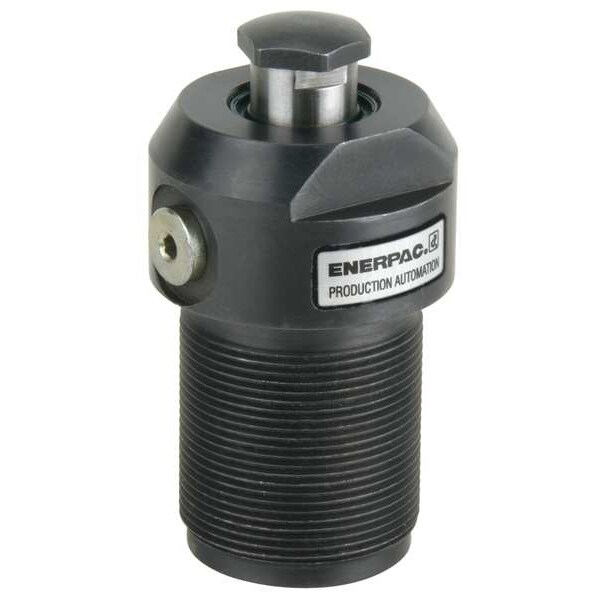

WFT71, 1,650 lbs Capacity, 0.40 in Stroke, Work Support, Threaded Body, Hydraulic Advance
Mfr # WFT71
Zoro # G1553422
product price:Â $448.99
/ea
Free Shipping & Returns
Key Features
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Threaded Body
Stroke Length
3/8 in
Stroke
0.38"
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WFT71
- Zoro #
- G1553422
- UPC #
- 662005311392
- Country of Origin
- United States
Dimensions
- Stroke Length
- 3/8 in
- Extended Height
- 3.51 in
- Oil Port Size
- #2 SAE
- Retracted Height
- 3.13 in
- Outside Dia.
- 1 3/8 in
- Plunger Dia.
- 0.591 in
Details
- Item
- Hydraulic Work Support
- Application
- Hold
- Includes
- Contact Button, Manifold Seal
- Type
- Threaded Body
- Stroke
- 0.38"
- Body Thread
- 1-3/8"-18
- Material of Construction
- Steel/Bronze
- Oil Capacity
- 0.04 cu in
- Pressure Range
- 700 to 5000 psi
- Max. Oil Flow
- 40 cu in/min
- Plunger Contact Spring Force Extended
- 2 lbf
- Plunger Contact Spring Force Retracted
- 5.8 lbf
- Max. Support Force
- 1,650 lbf
- Function
- Fluid Advanced
- Max. Pressure
- 5,000 psi
- Mounting Style
- Threaded Body
- Material
- Bronze, Steel
- Series
- WFT
Description
Hydraulic Work Support, Threaded Body, Bronze, Steel, Max. Support Force 1,650 lbf, Stroke Length 3/8 in, Pressure Range 700 to 5000 psi, Retracted Height 3.13 in, Body Thread 1-3/8 In.-18, Series WFT, Plunger Contact Spring Force Extended 2 lbf, Plunger Contact Spring Force Retracted 5.8 lbf, Oil Capacity 0.04 cu in, Max. Oil Flow 40 cu in/min, Oil Port Size #2 SAE, Extended Height 3.51 in, Outside Dia. 1 3/8 in, Plunger Dia. 0.591 in, Includes Contact Button, Manifold Seal
