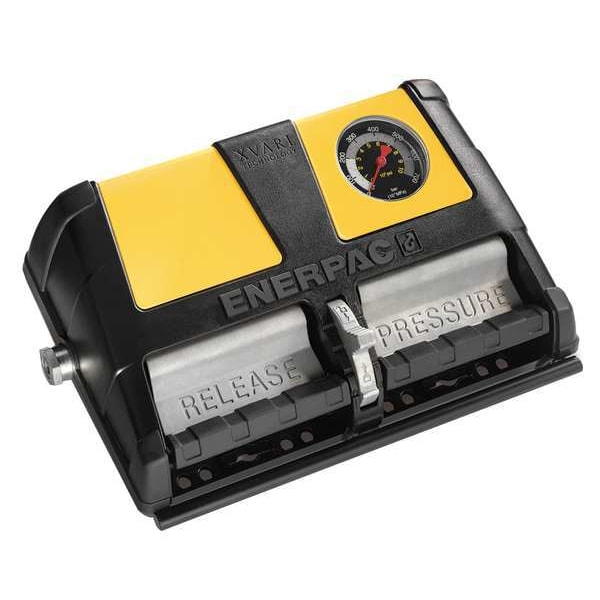

Enerpac XA11G, Air Driven Hydraulic Pump, 3/3 Valve, 61 in3 Oil, Pressure Gauge, For Single-Acting Tools XA11G - main

XA11G, Air Driven Hydraulic Pump, 3/3 Valve, 61 in3 Oil, Pressure Gauge, For Single-Acting Tools

  • Mfr # XA11G

  • Zoro # G5639496

product price:  $1,796.99
/ea
Free Shipping & Returns

Key Features

Oil Capacity (Cu.-In.)
61 cu in
Reservoir Capacity (Gal.)
0.26 gal
Oil Displacement @ 0 PSI
120.00 cu in/min
Oil Displacement @ 10,000 PSI
15 cu in/min
Operating Air PSI
30 to 125
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XA11G
Zoro #
G5639496
UPC #
662005139262
Country of Origin
China

Dimensions

Height (In.)
6.69 in
Width (In.)
8.74 in
Length (In.)
13.82 in
Media Intake Connection Size
3/8 in
Overall Length
13.8 in
Air Intake Connection Size
1/4 in
Overall Height
6.7 in
Overall Width
8.7 in

Details

Item
Hydraulic Pump
Oil Capacity (Cu.-In.)
61 cu in
Reservoir Capacity (Gal.)
0.26 gal
Oil Displacement @ 0 PSI
120.00 cu in/min
Oil Displacement @ 10,000 PSI
15 cu in/min
Operating Air PSI
30 to 125
Air Consumption (SCFM)
10 to 35
Actuation Type
Foot
Treadle
Foot Operated
Fluid Port NPT (In.)
3/8
Capacity (PSI)
10,000
Includes
External Adjustable Pressure Setting Valve, Ground Screw
dBA
87
Type
Air Powered
Air Inlet NPT (In.)
1/4 Female
Usable Oil Capacity Horizontal Mount
122 cu in
Usable Oil Capacity Vertical Mount
122 cu in
Built-In
Sight Gauge
Features
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Reservoir Capacity
61 cu in
Air Intake Pressure - Maximum
125 psi
Air Consumption - Maximum
35 scfm
Flow Rate - Maximum
15 cu in/min
Control Valve Type
3-Position, 3-Way
Operating Pressure - Maximum
10,000 psi
Sound Level - Maximum
87 dBA
Control Valve Function
Advance, Hold, Retract
Displacement @ No Load
120 cu in/min
Air Intake Connection Type
FNPT

Description

Hydraulic Pump, Reservoir Capacity 61 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 15 cu in/min, Sound Level - Maximum 87 dBA, Control Valve Type 3-Position, 3-Way, Actuation Type Foot, Air Consumption - Maximum 35 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Displacement @ No Load 120 cu in/min
