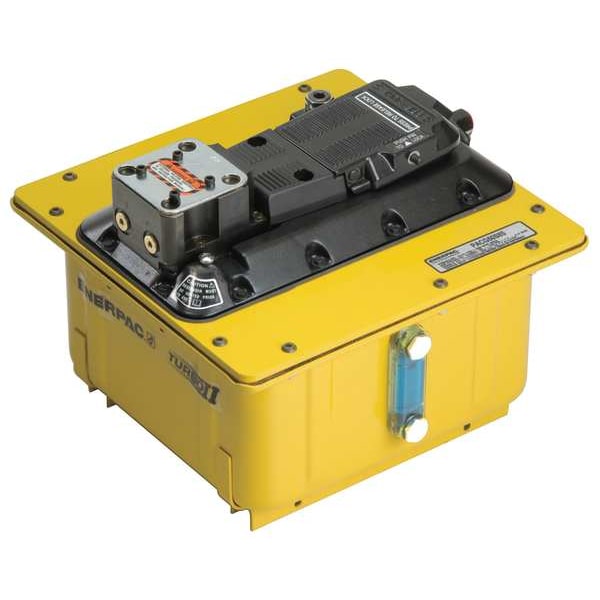

Pump, Air/Hyd, 5000 PSI, 2 Gal, w/Manifold
$897.61 /ea
This item ships free. Details.Standard ground shipping.
Details:
Reservoir Capacity (Gal.): 2Oil Displacement @ 0 PSI: 120.00 cu. in./min.Capacity (PSI): 1250 to 5000Hydraulic Pump, Air Powered, Manual Treadle Actuation Type, Capacity (PSI) 1250 to 5000, Air Consumption (SCFM) 12, Oil Displacement @ 0 PSI 120.00 cu. in./min., Oil Displacement @ 5000 psi 20 cu. in./min., Fluid Port NPT (In.) #4 SAE, Air Inlet NPT (In.) 1/4 Female, Oil Capacity (Cu.-In.) 462.00, Reservoir Capacity (Gal.) 2, Operating Air PSI 50 to 125, 75 dBA, Two Position Treadle, Length (In.) 12.5, Width (In.) 12, Height (In.) 9.62, Requires D03 Style Valve, Includes D03 Valve Manifold
Specifications
| Zoro #: G2152525 Mfr #: PASG50S8S | |
| Reservoir Capacity (Gal.): 2 | Oil Displacement @ 0 PSI: 120.00 cu. in./min. |
| Capacity (PSI): 1250 to 5000 | Type: Air Powered |
| Operating Air PSI: 50 to 125 | Air Consumption (SCFM): 12 |
| Includes: D03 Valve Manifold | Length (In.): 12.5 |
| Oil Capacity (Cu.-In.): 462.00 | Usable Oil Capacity Horizontal Mount: 462 cu. in. |
| Features: Requires D03 Style Valve | Item: Hydraulic Pump |
| dBA: 75 | Oil Displacement @ 5000 PSI: 20 cu. in./min. |
| Fluid Port NPT (In.): #4 SAE | Air Inlet NPT (In.): 1/4 Female |
| Width (In.): 12 | Actuation Type: Manual Treadle |
| Treadle: Two Position | Height (In.): 9.62 |
| Country of Origin (subject to change): United States | |
Description
Hydraulic Pump, Air Powered, Manual Treadle Actuation Type, Capacity (PSI) 1250 to 5000, Air Consumption (SCFM) 12, Oil Displacement @ 0 PSI 120.00 cu. in./min., Oil Displacement @ 5000 psi 20 cu. in./min., Fluid Port NPT (In.) #4 SAE, Air Inlet NPT (In.) 1/4 Female, Oil Capacity (Cu.-In.) 462.00, Reservoir Capacity (Gal.) 2, Operating Air PSI 50 to 125, 75 dBA, Two Position Treadle, Length (In.) 12.5, Width (In.) 12, Height (In.) 9.62, Requires D03 Style Valve, Includes D03 Valve Manifold
