  11. XA12G, Air Driven Hydraulic Pump, 3/3 Valve, 122 in3 Oil, Pressure Gauge, For Single-Acting Tools
Shop All Air Hydraulic Pumps
Enerpac

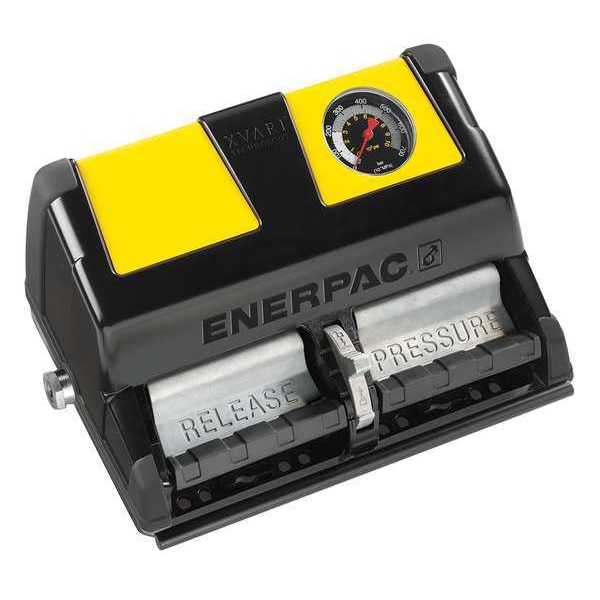

XA12G, Air Driven Hydraulic Pump, 3/3 Valve, 122 in3 Oil, Pressure Gauge, For Single-Acting Tools

product price: $1,881.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Oil Capacity (Cu.-In.) 122 cu in
  • Reservoir Capacity (Gal.) 0.52 gal
  • Oil Displacement @ 0 PSI 120.00 cu in/min
  • Oil Displacement @ 10,000 PSI 15 cu in/min
See all product information

Product Information

Dimensions

Height (In.) 6.89 in
Length (In.) 13.82 in
Width (In.) 8.74 in
Air Intake Connection Size 1/4 in
Overall Length 13.8 in
Overall Width 8.7 in
Overall Height 6.7 in
Media Intake Connection Size 3/8 in

Details

Promotion Restriction Not eligible for promotion
Item Hydraulic Pump
Oil Capacity (Cu.-In.) 122 cu in
Reservoir Capacity (Gal.) 0.52 gal
Oil Displacement @ 0 PSI 120.00 cu in/min
Oil Displacement @ 10,000 PSI 15 cu in/min
Operating Air PSI 30 to 125
Air Consumption (SCFM) 10 to 35
Actuation Type Foot
dBA 87
Fluid Port NPT (In.) 3/8
Built-In Sight Gauge
Treadle Foot Operated
Capacity (PSI) 10,000
Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Air Inlet NPT (In.) 1/4 Female
Includes External Adjustable Pressure Setting Valve, Ground Screw
Type Air Powered
Usable Oil Capacity Horizontal Mount 122 cu in
Usable Oil Capacity Vertical Mount 122 cu in
Air Intake Pressure - Maximum 125 psi
Reservoir Capacity 122 cu in
Air Intake Connection Type FNPT
Displacement @ No Load 120 cu in/min
Air Consumption - Maximum 35 scfm
Control Valve Type 3-Position, 3-Way
Flow Rate - Maximum 15 cu in/min
Sound Level - Maximum 87 dBA
Control Valve Function Advance, Hold, Retract
Operating Pressure - Maximum 10,000 psi

Description

Hydraulic Pump, Reservoir Capacity 122 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 15 cu in/min, Sound Level - Maximum 87 dBA, Control Valve Type 3-Position, 3-Way, Actuation Type Foot, Air Consumption - Maximum 35 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Displacement @ No Load 120 cu in/min
