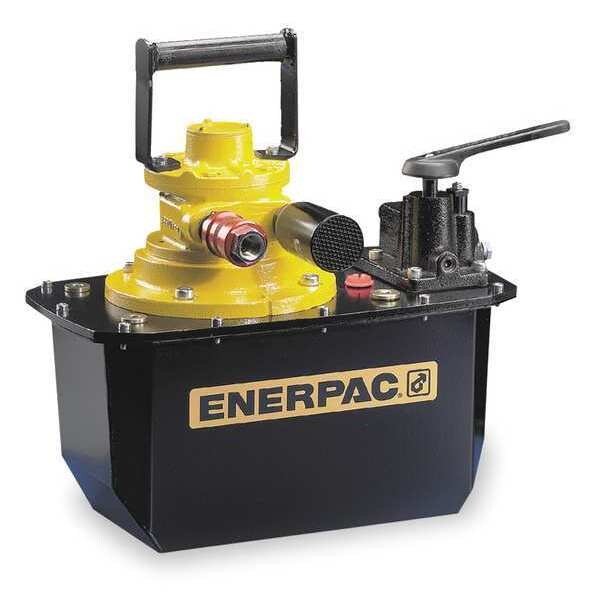

ZA4208MX, Two Speed, Air Hydraulic Pump, 3/2 Manual Valve, 1.75 gal Oil, For Single-Acting Cylinders

  • Mfr # ZA4208MX
  • Zoro # G2632016
product price:
$
7,110.00
/ea
Additional $155.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Oil Capacity (Cu.-In.)
404 cu in
Reservoir Capacity (Gal.)
1.75 gal
Oil Displacement @ 0 PSI
850.00 cu in/min
Oil Displacement @ 10,000 PSI
80 cu in/min
Operating Air PSI
60 to 100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZA4208MX
Zoro #
G2632016
UPC #
662005132645
Country of Origin
United States

Dimensions

Height (In.)
14 in
Width (In.)
12.7 in
Length (In.)
16.3 in
Overall Length
19.4 in
Air Intake Connection Size
1/2 in
Overall Width
12.5 in
Media Intake Connection Size
3/8 in
Overall Height
20.5 in
Wire Rope Length
19.4 in
Length
19.4 in
Fits Chest Size
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve

Details

Item
Air Hydraulic Pump
Oil Capacity (Cu.-In.)
404 cu in
Reservoir Capacity (Gal.)
1.75 gal
Oil Displacement @ 0 PSI
850.00 cu in/min
Oil Displacement @ 10,000 PSI
80 cu in/min
Operating Air PSI
60 to 100
Oil Displacement @ 5000 PSI
110 cu in/min
Air Consumption (SCFM)
20 to 100
Actuation Type
Foot, Hand
Air Inlet NPT (In.)
1/4
Built-In
Pressure Relief Valve
Fluid Port NPT (In.)
3/8
dBA
94 to 97
Type
Air Powered
Capacity (PSI)
10,000
Displacement @ 10,000 PSI
80 cu in/min
Features
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Treadle
3-way, 2-position
Air Intake Pressure - Maximum
100 psi
Displacement @ 700 psi
675 cu in/min
Control Valve Type
2-Position, 3-Way
Sound Level - Maximum
97 dBA
Operating Pressure - Maximum
10,000 psi
Reservoir Capacity
404 cu in
Sound Level - Minimum
94 dBA
Air Intake Connection Type
FNPT
Displacement @ 100 psi
850 cu in/min
Control Valve Function
Advance, Retract
Air Consumption - Maximum
100 scfm
Flow Rate - Maximum
80 cu in/min
Displacement @ 5000 psi
110 cu in/min

Description

Hydraulic Pump, Reservoir Capacity 404 cu in, Air Intake Pressure - Maximum 100 psi, Air Intake Connection Size 1/2 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 100 psi 850 cu in/min, Displacement @ 5000 psi 110 cu in/min, Displacement @ 10,000 PSI 80 cu in/min, Sound Level - Maximum 97 dBA, Control Valve Type 2-Position, 3-Way, Actuation Type Foot, Hand, Air Consumption - Maximum 100 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Retract
