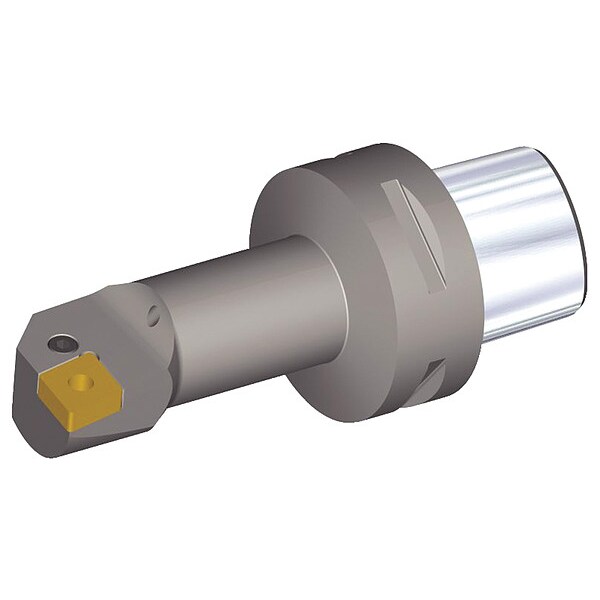

Indexable Cutting Head Unit, PSC50S20FPCLNR09, 110.00mm L, 80 Degrees Diamond Insert Shape
Mfr # PSC50S20FPCLNR09
Zoro # G3569244
product price: $708.99
/ea
Free Shipping & Returns
Key Features
Overall Length
110.00mm
Insert Shape
80 Degrees Diamond
Cutting Direction
Right Hand
Rake
-13.5 Degrees Radial, -5 Degrees Axial
Insert Size
090308 (322)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC50S20FPCLNR09
Zoro #
G3569244
UPC #
4061779292900
Country of Origin
Spain
Dimensions
Overall Length
110.00mm
Insert Size
090308 (322)
Shank Dia.
50.00mm
Min. Bore Dia.
25.00mm
Max. Bore Depth
56.00mm
Insert Cutting Edge Length
9.67mm
Connection Size
PSC50
Details
Item
Indexable Cutting Head Unit
Insert Shape
80 Degrees Diamond
ANSI Code
PSC50S20FPCLNR09
Cutting Direction
Right Hand
Rake
-13.5 Degrees Radial, -5 Degrees Axial
Coolant Fed
Coolant Through
Number of Coolant Holes
1
Toolholder Style
PCLN
Cutting Application
Boring
Approach Angle
95 Degrees
Insert Holding Type
P-Clamping (Lever Lock or Lock Pin)
Standards
ISO 26623
Side Cutting Edge Angle
-5 Degrees
ISO Number
PSC50S20FPCLNR09
Insert Style
CN
Center to Cutting Tip
13.00mm
Insert Clearance Angle
0 Degrees
Description
Indexable Cutting Head Unit, PCLN, Insert Shape 80 Degrees Diamond, Overall Length 110.00mm, PSC50S20FPCLNR09, 95 Degrees , 13.00mm, Coolant Through, Boring, Right Hand
