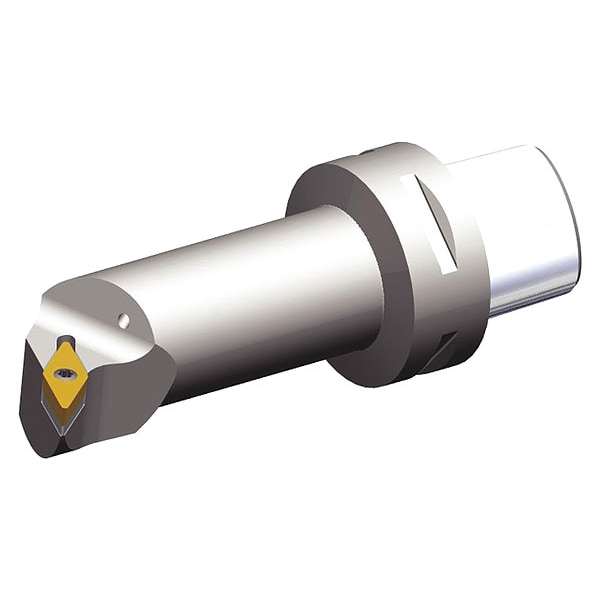

Indexable Cutting Head Unit, PSC50S32JSVQBR16, 140.00mm L, 35 Degrees Diamond Insert Shape
Mfr # PSC50S32JSVQBR16
Zoro # G3568370
product price: $906.99
/ea
Free Shipping & Returns
Key Features
Overall Length
140.00mm
Insert Shape
35 Degrees Diamond
ANSI Code
PSC50S32JSVQBR16
Shank Dia.
50.00mm
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC50S32JSVQBR16
Zoro #
G3568370
UPC #
4059782017573
Country of Origin
Spain
Dimensions
Overall Length
140.00mm
Shank Dia.
50.00mm
Insert Size
160408 (332)
Max. Bore Depth
88.00mm
Min. Bore Dia.
40.00mm
Insert Cutting Edge Length
16.61mm
Connection Size
PSC50
Details
Item
Indexable Cutting Head Unit
Insert Shape
35 Degrees Diamond
ANSI Code
PSC50S32JSVQBR16
Cutting Direction
Right Hand
Rake
-8 Degrees Radial, 0 Degrees Axial
Number of Coolant Holes
1
Insert Style
VB
ISO Number
PSC50S32JSVQBR16
Side Cutting Edge Angle
-17.5 Degrees
Insert Clearance Angle
5 Degrees
Cutting Application
Boring
Standards
ISO 26623
Coolant Fed
Coolant Through
Center to Cutting Tip
22.00mm
Approach Angle
107.5 Degrees
Insert Holding Type
Screw On
Toolholder Style
SVQB
Description
Indexable Cutting Head Unit, SVQB, Insert Shape 35 Degrees Diamond, Overall Length 140.00mm, PSC50S32JSVQBR16, 107.5 Degrees , 22.00mm, Coolant Through, Boring, Right Hand
