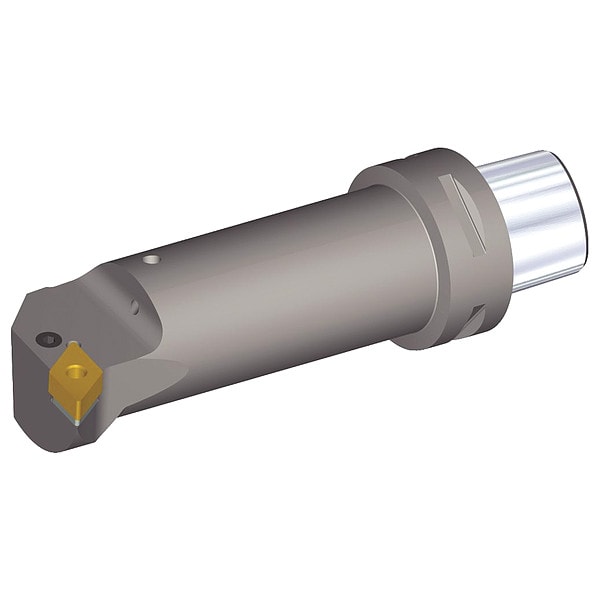

Indexable Cutting Head Unit, PSC63S32JPDUNL15, 148.00mm L, 55 Degrees Diamond Insert Shape
Mfr # PSC63S32JPDUNL15
Zoro # G3569089
product price: $789.99
/ea
Free Shipping & Returns
Key Features
Overall Length
148.00mm
Insert Shape
55 Degrees Diamond
ANSI Code
PSC63S32JPDUNL15
Cutting Direction
Left Hand
Insert Size
150608 (442)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC63S32JPDUNL15
Zoro #
G3569089
UPC #
4056544995322
Country of Origin
Spain
Dimensions
Overall Length
148.00mm
Insert Size
150608 (442)
Shank Dia.
63.00mm
Insert Cutting Edge Length
15.50mm
Max. Bore Depth
84.00mm
Min. Bore Dia.
40.00mm
Connection Size
PSC63
Details
Item
Indexable Cutting Head Unit
Insert Shape
55 Degrees Diamond
ANSI Code
PSC63S32JPDUNL15
Cutting Direction
Left Hand
Rake
-14 Degrees Radial, -5 Degrees Axial
Insert Style
DN
Toolholder Style
PDUN
Coolant Fed
Coolant Through
Standards
ISO 26623
Approach Angle
93 Degrees
Insert Clearance Angle
0 Degrees
Number of Coolant Holes
1
ISO Number
PSC63S32JPDUNL15
Cutting Application
Boring
Side Cutting Edge Angle
-3 Degrees
Center to Cutting Tip
22.00mm
Insert Holding Type
P-Clamping (Lever Lock or Lock Pin)
Description
Indexable Cutting Head Unit, PDUN, Insert Shape 55 Degrees Diamond, Overall Length 148.00mm, PSC63S32JPDUNL15, 93 Degrees , 22.00mm, Coolant Through, Boring, Left Hand
