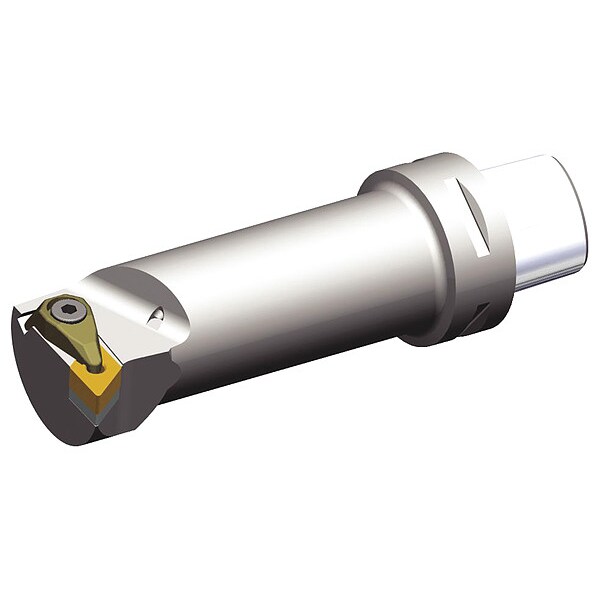

Indexable Cutting Head Unit, PSC63S40LDDUNR1506, 178.00mm L, 55 Degrees Diamond Insert Shape
Mfr # PSC63S40LDDUNR1506
Zoro # G3569719
product price: $789.99
/ea
Free Shipping & Returns
Key Features
Overall Length
178.00mm
Insert Shape
55 Degrees Diamond
ANSI Code
PSC63S40LDDUNR1506
Rake
-11 Degrees Radial, -4 Degrees Axial
Insert Size
150608 (442)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSC63S40LDDUNR1506
Zoro #
G3569719
UPC #
4059782022744
Country of Origin
Spain
Dimensions
Overall Length
178.00mm
Insert Size
150608 (442)
Shank Dia.
63.00mm
Insert Cutting Edge Length
15.50mm
Min. Bore Dia.
50.00mm
Max. Bore Depth
114.00mm
Connection Size
PSC63
Details
Item
Indexable Cutting Head Unit
Insert Shape
55 Degrees Diamond
ANSI Code
PSC63S40LDDUNR1506
Rake
-11 Degrees Radial, -4 Degrees Axial
Cutting Direction
Right Hand
Insert Holding Type
Clamp
Side Cutting Edge Angle
-3 Degrees
Center to Cutting Tip
27.00mm
Approach Angle
93 Degrees
Insert Style
DN
Coolant Fed
Coolant Through
Compatible Hardware
Kenclamp
Toolholder Style
DDUN
Standards
ISO 26623
ISO Number
PSC63S40LDDUNR1506
Insert Clearance Angle
0 Degrees
Cutting Application
Boring
Description
Indexable Cutting Head Unit, DDUN, Insert Shape 55 Degrees Diamond, Overall Length 178.00mm, PSC63S40LDDUNR1506, 93 Degrees , 27.00mm, Kenclamp, Coolant Through, Boring, Right Hand
