  11. Locking Connector, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Yellow

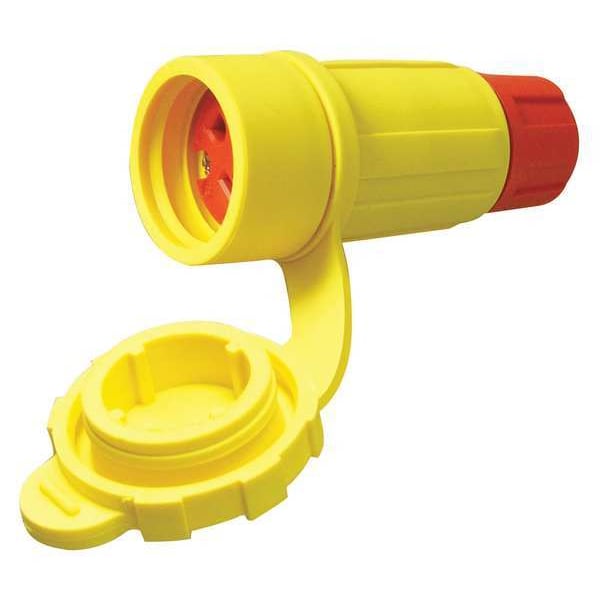

Ericson Locking Connector, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Yellow 1622-CW6P-AM - main

Locking Connector, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Yellow

  • Mfr # 1622-CW6P-AM

  • Zoro # G0117017

product price: $48.39
/ea

Key Features

NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1622-CW6P-AM
Zoro #
G0117017
UPC #
782862899779
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.620 in
For Minimum Cable Diameter
0.30 in
For Maximum Cable Diameter
0.62 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wiring Style
Standard
Shrouded
Yes
Housing Color
Yellow
Standards
CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740
Resistance Properties
Antimicrobial
Antimicrobial
Yes
Grade
Industrial
Material
Thermoplastic Elastomer
NEMA Rating
12, 4, 4X, 6, 6P
IP Rating
IP69K
Power Indicator
No
Insulation Material
Thermoplastic
Housing Material
Thermoplastic Elastomer
Market
Industrial
Power Indicating Light
No
For Environment
Washdown
Midget Locking
No
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Case Qty
50
Device Type
Connector
Sub Brand / Trademark
Perma-Kleen
Blade Style
Locking
Maximum Voltage
250 V
Current
15 A
RoHS Compliant
Yes

Description

Locking Connector, Current Rating 15 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L6-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Shrouded Yes, Voltage Rating 250V AC, Wiring Style Standard, For Maximum Cable Diameter 0.62 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Market Industrial, Midget Locking No, NEMA Enclosure Rating 12, 4, 4X, 6, 6P
