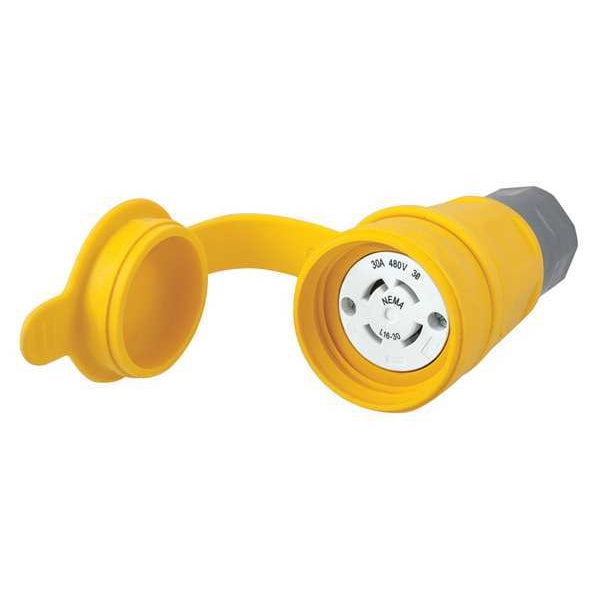

Watertight Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL29W76

  • Zoro # G9990653

product price:
$
162.00
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL29W76
Zoro #
G9990653
UPC #
783585131894
Country of Origin
Multiple

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Overall Length
2.77 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Height
5.67 in
Length
2.77 in
Width
2.77 in
Dimensions
2.77 in x 2.77 in x 5.67 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Wire Rope Length
2.77 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
IP Rating
IP69K
Special Features
Corrosion resistant
Grade
Industrial/Commercial
Material
Thermoplastic Elastomer, Valox
Body Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
Horsepower Rating
10 hp
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Market
Industrial
UL 94 Flammability Rating
HB
Power Indicating Light
No
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Bushing Material
Black Elastomer
Dielectric Strength
3500V AC
Retainer Material
Clear Polycarbonate
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Antimicrobial
No
Power Indicator
No
Power and Ground Indicating Light
No

Description

The HUBBELL 30A Watertight Locking Connector (L16-30R) is a three-pole, four-wire connector designed for industrial and commercial electrical applications intended for use in environments where watertight properties are specified. Rated for 480V AC and 30 amps, this connector features a thermoplastic elastomer body with a smooth surface that minimizes debris collection points and simplifies washdown processes. The unit includes stainless steel hardware and connection points, with a strain relief nut designed to seal directly on the body to further reduce contamination risks.


Key Features of the HUBBELL 30A Watertight Locking Connector:

  • Body/Housing Material: Thermoplastic elastomer with Valox components for durability

  • Bushing Material: Black elastomer bushing

  • Contact Material: Nickel-plated brass contacts

  • Cord Size Compatibility: Accepts cords from 0.375 in to 1.125 in diameter

  • NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; IP69K moisture resistance

  • Operating Temperature Range: -40°C to +60°C continuous use

  • Wire Size Range: Supports wire sizes from minimum of 18 AWG up to maximum of 8 AWG

  • Connection Type: Screw terminals with standard wiring style; straight orientation; grounded design

  • Corrosion/UV/Moisture Resistance: Exposed materials are UV stabilized and corrosion resistant for demanding environments

  • Industry Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL498 current interrupting rated; UL94 HB flammability rating
